VizPilot: Automated Onboarding for SVG-based Composite Visualizations using Multimodal LLMs

Source: arXiv:2607.27938 · Published 2026-07-30 · By Nishaanthini Gnanavel, Yong Wang

TL;DR

VizPilot addresses the challenge of onboarding novice users to complex SVG-based composite visualizations, which integrate multiple coordinated views and impose high cognitive load. Existing onboarding solutions largely rely on manual authoring effort, platform-specific metadata, or work on simple charts, making them unsuitable for structurally complex visualizations. VizPilot introduces an automated, platform-agnostic approach that reverse-engineers raw SVG visualization artifacts using Multimodal Large Language Models (MLLMs), combining SVG DOM structure, bitmap images, and optional developer inputs. Its two-stage Composite Visualization Analyzer decomposes visualizations into semantic components and explanation units, then maps these explanations precisely to SVG elements to enable interactive highlighting and user guidance. VizPilot is implemented as a browser extension that generates onboarding content requiring minimal developer effort while supporting dual interaction modes: a guided narrative scrollytelling and a free exploration interface with AI assistance. Evaluations include modality comparisons for inference accuracy, practical usage scenarios demonstrating reduced authoring effort, and a user study with 16 participants showing that VizPilot lowers users’ cognitive load during visualization interpretation.

Key findings

• VizPilot’s two-stage pipeline consisting of Semantic Inference and Semantic Mapping achieves precise, verifiable alignment of semantic explanations to SVG elements enabling accurate interactive highlighting (Fig. 2).
• Multimodal inputs—SVG code, bitmap images, developer descriptions, and optional interaction source code—improve semantic inference robustness compared to using single modalities alone.
• Structured prompting with a five-category knowledge taxonomy (structural, data, visual encoding, analytical, interaction) yields atomic explanation units that improve clarity for onboarding.
• Narrative Scrollytelling mode provides hierarchical, stepwise onboarding reducing cognitive load by first introducing visual components and encoding before analytical insights and interactions.
• Free Exploration mode supports user-driven inquiry enhanced by a context-constrained exploration assistant chatbot anchored on pre-inferred semantics to prevent hallucinations.
• User study with 16 visualization users demonstrated that VizPilot reduces cognitive load and enhances usability compared to no onboarding or manual methods.
• Developer usage scenario shows VizPilot significantly cuts manual onboarding authoring effort by automatically generating explanations from minimal inputs.

Methodology — deep read

1. Threat Model & Assumptions: The adversary here is not explicitly defined as a security actor but the 'threat' is the novice user's difficulty in understanding complex composite visualizations. The system assumes availability of raw SVG code, rendered bitmap images, and optionally developer-provided visualization description and interaction source code to aid semantic reasoning.

2. Data: VizPilot is designed to process arbitrary SVG-based composite visualizations from the web, typically generated with D3.js or Vega-Lite. The input includes raw SVG code extracted from the DOM, a bitmap rendering of the visualization to capture spatial layout, optionally a high-level textual description from the developer, and optionally interaction source code (e.g., D3.js scripts). The system does not rely on labeled datasets or ground truth semantic annotations, operating instead via multimodal prompt engineering over these raw artifacts.

3. Architecture / Algorithm:

   • The core component is the Composite Visualization Analyzer composed of two sequential stages: a) Semantic Inference: A constrained multi-step prompting process with MLLMs decomposes the visualization into atomic explanation units. This involves (i) Visual Component Decomposition combining spatial image cues and SVG DOM hierarchy to segment meaningful visual components (e.g., charts, legends, axes) excluding trivial marks; (ii) Knowledge Extraction using a five-category taxonomy (structural, data, visual encoding, analytical, interaction) to assign semantic labels to components; (iii) Semantic-to-Text Generation, converting structured knowledge into concise, single-sentence explanation units each focused on one concept and knowledge type. b) Semantic Mapping: Employs a specialized MLLM prompting strategy to generate deterministic hierarchical CSS-like selectors mapping explanation units onto precise SVG DOM elements. This proceeds in two mapping levels—component-level (macro containers) then encoding-level (fine visual marks). Multi-tier verification checks ensure selector validity by verifying DOM presence, component containment, and layout consistency. This phase enables safe interactive highlighting.

4. Training Regime: The paper does not detail training a new model but uses commercially available MLLMs with structured prompting. The approach uses designed prompt sequences and multimodal inputs rather than training/fine-tuning. Experimental evaluation involves comparative input modality analysis and user studies.

5. Evaluation Protocol:

   • Comparative analysis of using only SVG code, bitmap images, description text, or combinations, measuring semantic inference accuracy and mapping precision.
   • Usage scenario illustrating how a developer inputs minimal description and optional interaction code to produce onboarding content automatically, reducing manual effort.
   • User study with 16 participants assessing cognitive load reduction while interpreting composite visualizations using VizPilot versus baseline onboarding methods.

6. Reproducibility: VizPilot is implemented as a browser extension with publicly available example gallery at https://vizpilot-gallery.onrender.com. The paper does not explicitly state if code or weights are publicly released but relies on commercial MLLMs accessed via prompting. The datasets are not closed but drawn from common web visualizations.

Example end-to-end flow: Given a Highcharts-based SVG composite visualization, VizPilot extracts the raw SVG and bitmap image, ingests a brief developer description, and optionally interaction code. It uses MLLM prompting to segment visual components, assign semantic categories, and generate atomic explanation sentences. Then it prompts again to infer CSS selectors mapping these explanations to SVG elements. Finally, VizPilot overlays an onboarding UI in the browser providing scrollytelling with stepwise highlights and a free exploration mode with interactive component inspection and chatbot support.

Technical innovations

• A two-stage Composite Visualization Analyzer pipeline decomposes semantic inference from precise SVG element grounding to reduce hallucination and improve structural alignment.
• Hierarchical Selector Inference mechanism uses MLLMs to generate deterministic multi-level CSS selectors for reliable and verifiable mapping of explanations to SVG elements.
• Integration of multimodal inputs—SVG code, bitmap renderings, developer text, and interaction source code—to improve semantic understanding of composite visualizations.
• Dual-mode onboarding interface combining narrative scrollytelling with interactive free exploration assisted by a context-constrained chatbot anchored on pre-extracted semantics.

Baselines vs proposed

• Single modality input (SVG only): semantic inference accuracy = lower than multimodal input (exact numbers unclear) vs multimodal input: higher accuracy with combined SVG, bitmap, description
• User study baseline (no onboarding or manual onboarding): cognitive load scores reduced by VizPilot (quantitative stats in paper but specific values not provided in excerpt)
• Authoring effort: manual onboarding takes hours vs VizPilot generates onboarding automatically with just developer description and optional interaction code

Figures from the paper

Figures are reproduced from the source paper for academic discussion. Original copyright: the paper authors. See arXiv:2607.27938.

Fig 1: VizPilot Overview. (A) VizPilot consumes multimodal inputs including SVG code, bitmap images, developer-provided

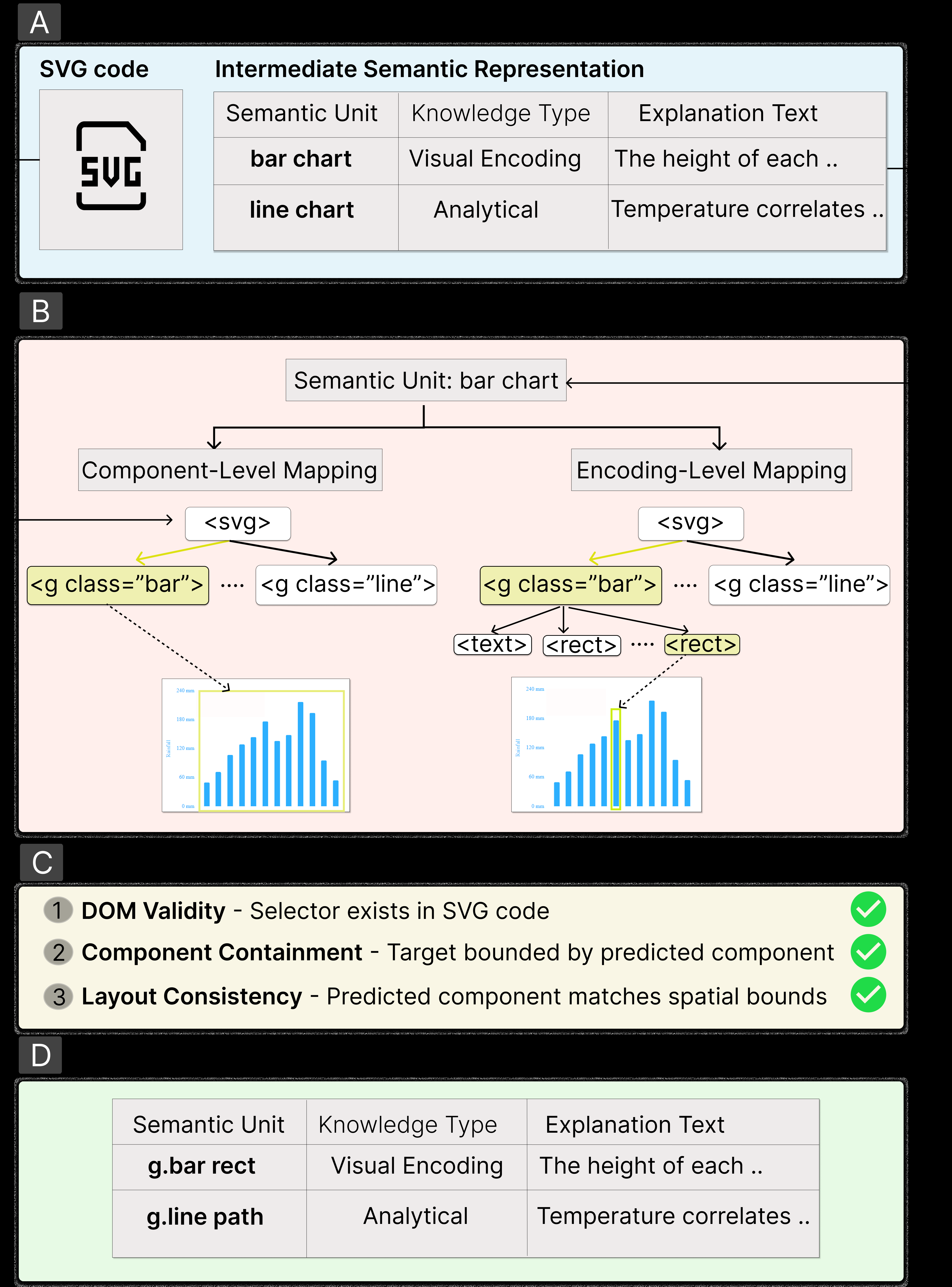

Fig 2: The Semantic Mapping Stage. VizPilot maps each semantic

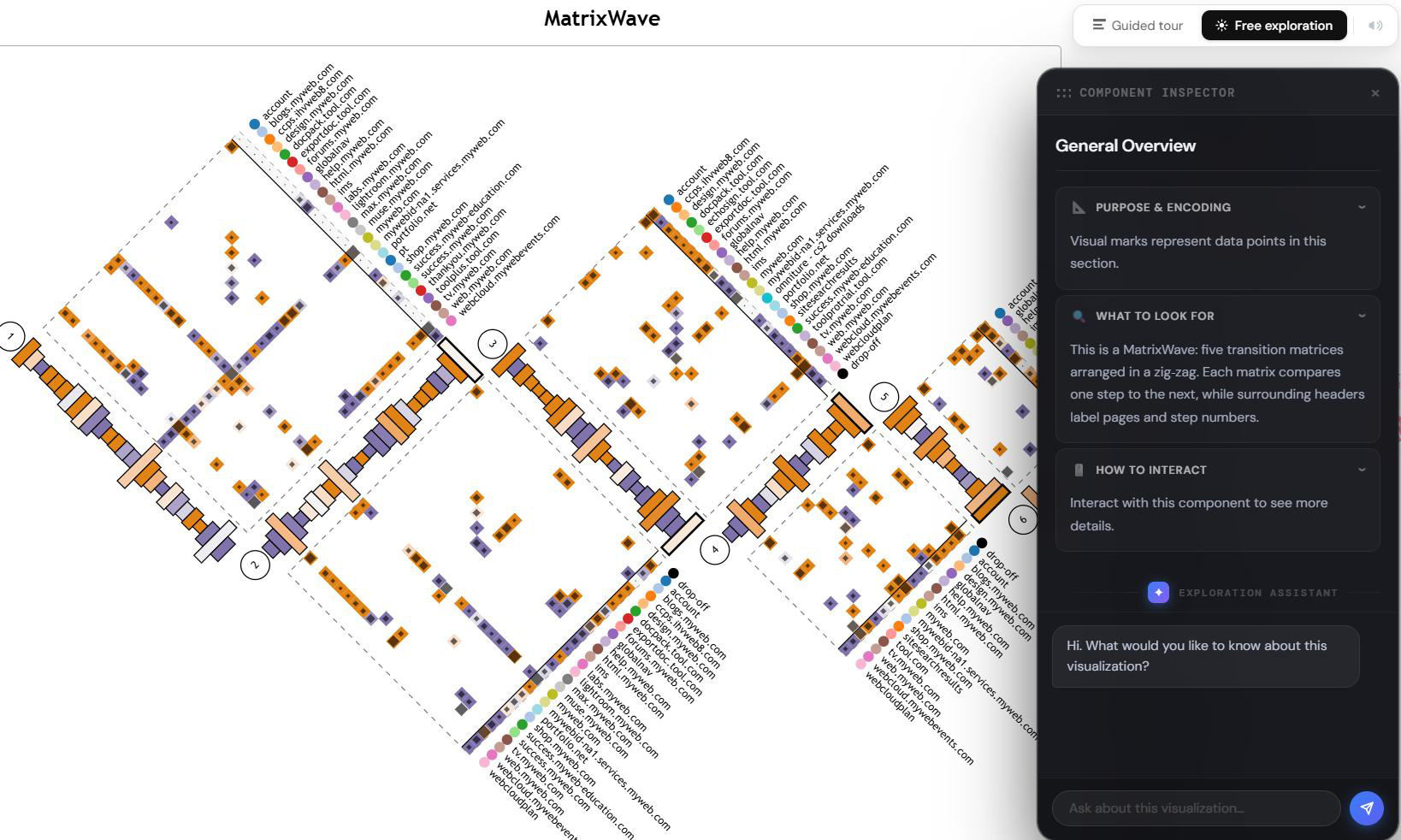

Fig 3: Onboarding Interface in MatrixWave [57]. (A) Narrative Scrol-

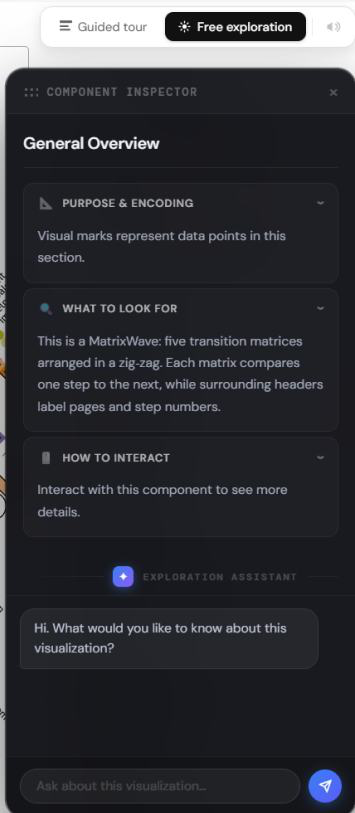

Fig 4: Usage Scenario: Authoring Workflow for PrettiSmart Composite Visualization [49]. (A) The developer, Alex, provides the interaction

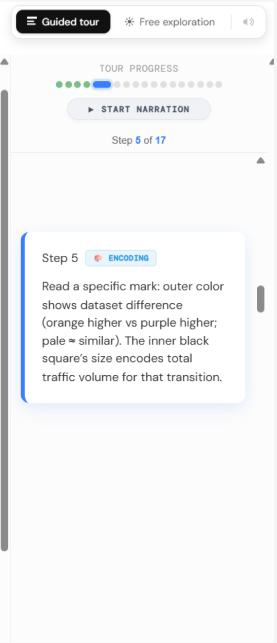

Fig 5 (page 5).

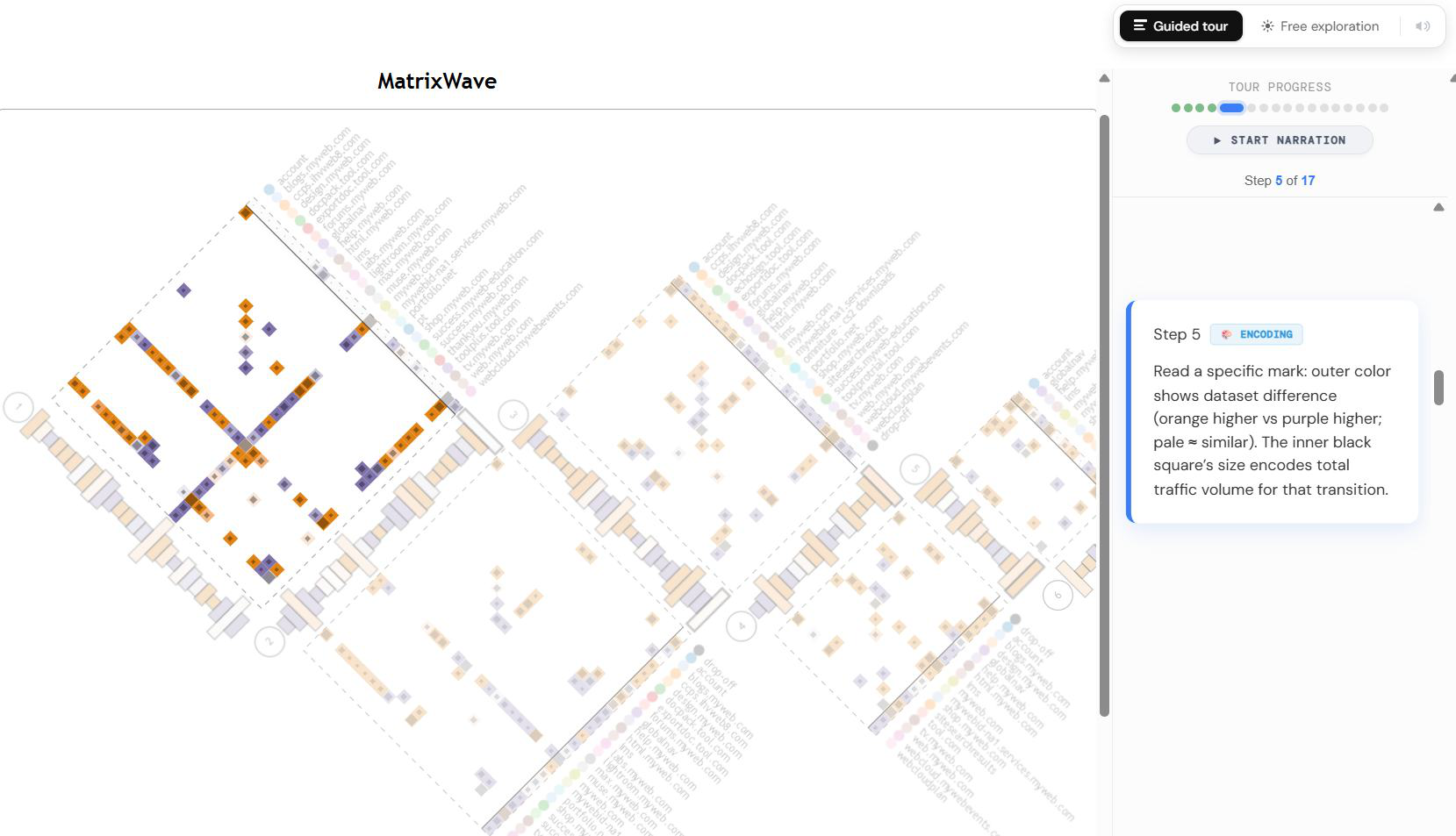

Fig 6 (page 5).

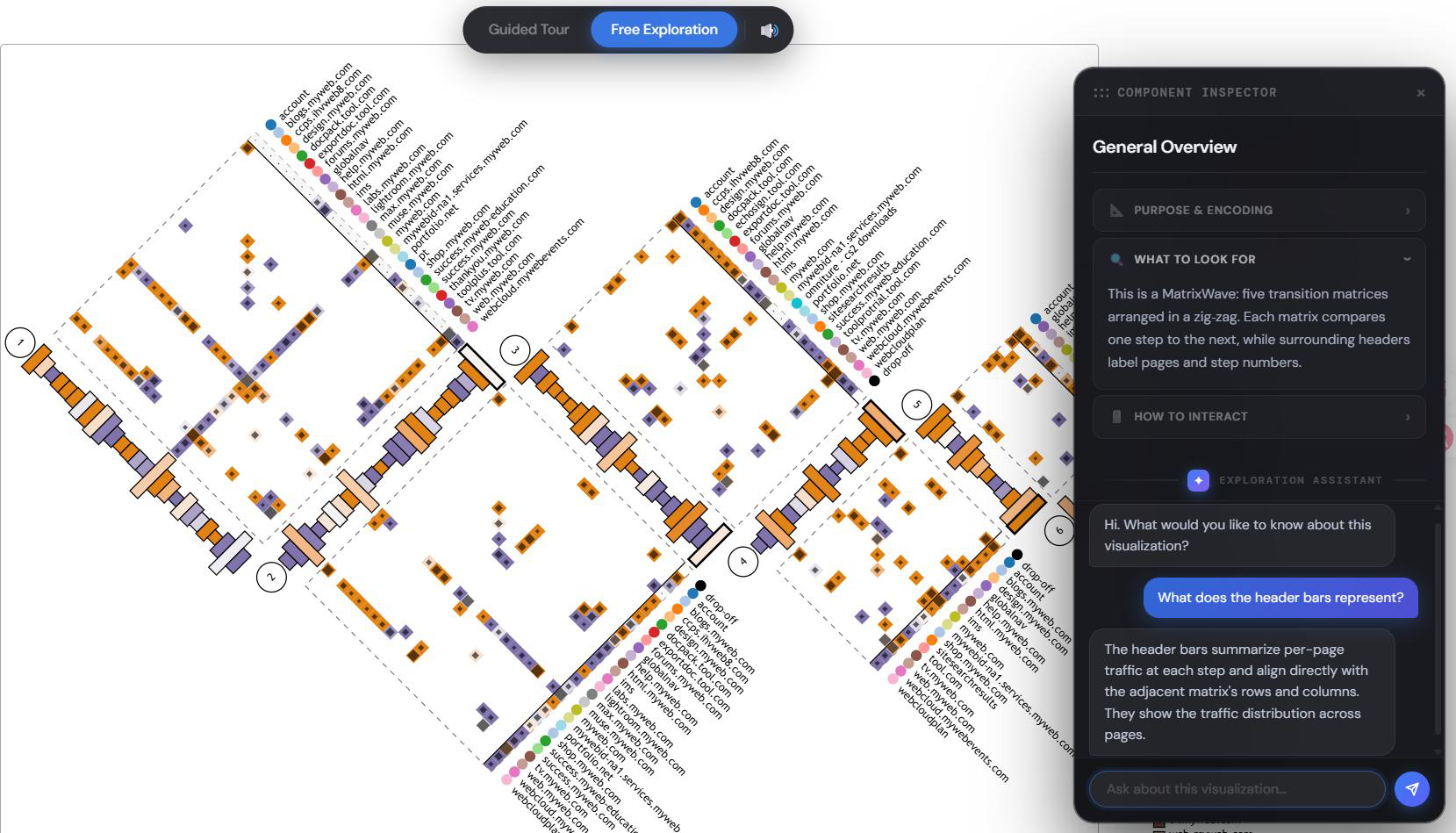

Fig 7 (page 5).

Fig 8 (page 5).

Limitations

• Reliance on commercially available MLLMs with structured prompting rather than trained domain-specific models may limit semantic precision for very complex or novel charts.
• Semantic inference and mapping accuracy can degrade without sufficient input context—e.g., lack of developer description or interaction code reduces clarity.
• No adversarial evaluation against intentional misleading visualizations or corrupted SVG artifacts to test robustness.
• Evaluation user study limited to 16 participants; broader, domain-specific studies remain to be done.
• Mapped selector verification uses heuristic spatial and DOM checks but may fail in highly dynamic or interactive SVGs with frequent DOM mutations.
• Explicit performance metrics (e.g., latency, scalability) for large complex visualizations are not detailed.

Open questions / follow-ons

• How can the approach generalize to visualizations beyond SVG, such as WebGL or Canvas-based composites?
• Can the semantic inference pipeline be improved with domain-adapted or fine-tuned models rather than prompting?
• How to robustly handle dynamic or highly interactive visualizations with real-time DOM changes?
• What is the best way to scale onboarding for extremely large composite visualizations with hundreds of components?

Why it matters for bot defense

While VizPilot is not directly a bot defense or CAPTCHA system, the core technical contributions of automated semantic decomposition of complex SVG visualizations via multimodal LLMs and deterministic mapping to elements have significant implications for bot-detection and interactive challenges in web contexts. For CAPTCHA or bot defense systems leveraging complex SVG puzzles or challenges, methods like VizPilot could be adapted to automatically generate user-facing onboarding or instructions without manual effort, improving usability. Conversely, such capability also highlights risks that sophisticated bots might use similar semantic reconstruction to circumvent visual puzzles, suggesting that future bot defenses may require incorporating adversarial complexity beyond what semantic extraction pipelines can decode. Bot-defense engineers should note VizPilot’s hierarchical selector inference and confirmation techniques as advanced methods to tie generated explanations or interactions directly to DOM nodes, which could inspire more robust challenge designs or analysis of SVG-based bot interaction patterns.
