GraphQAG: A Knowledge-Graph-Guided Visual Analytics Framework for Question-Answer Pairs Generation

Source: arXiv:2607.27182 · Published 2026-07-29 · By Yize Li, Ruiqi Yu, Tianya Pan, Ningxin Li, Songyue Li, Xiangyang Wu et al.

TL;DR

GraphQAG addresses the problem of generating high-quality question-answer (QA) pairs from long documents, where important knowledge is distributed across multiple paragraphs and linked via complex entity relationships. Existing QA pair generation (QAG) methods typically rely on local contexts and struggle with multi-hop reasoning, cross-paragraph connections, and multi-entity semantics, resulting in incomplete coverage and lower trustworthiness. GraphQAG innovates by constructing a comprehensive document knowledge graph (KG) that segments the document into paragraphs, extracts salient entities and relations, and creates subgraph-based generation spaces to guide large language model (LLM) question generation within well-defined knowledge and evidence boundaries. The system further integrates interactive visual analytics that enable users to explore the KG, inspect generated QA pairs along key quality dimensions (knowledge coverage, reasoning complexity, evidence grounding, non-redundancy), and iteratively refine the QA set through graph-based interactions.

The results from a user study with 16 participants, expert interviews, and two case studies show that GraphQAG effectively supports identifying knowledge coverage gaps, diagnosing QA quality issues, and targeted refinements. Users appreciated the explicit visual linkage of QA pairs to their evidence and knowledge structures, improving transparency and control over the generation process. This work advances QA pair generation beyond automatic batch methods by introducing a human-in-the-loop, KG-guided visual analytics workflow tailored for long complex documents with relational information.

Key findings

• GraphQAG constructs document knowledge graphs linking entities and relations extracted from segmented paragraphs, capturing cross-paragraph multi-entity relationships.
• Using Personalized PageRank and PageRank with paragraph priors, GraphQAG ranks and selects key entities to form local subgraphs for QA pair generation, controlling complexity via hop limits (up to 5 hops).
• The LLM-based QAG is constrained by these graph-structured subgraphs and their associated evidence, leading to QA pairs grounded explicitly in source passages and KG relations.
• Reverse verification reconstructs subgraphs from generated QA pairs, comparing them to reference subgraphs and using discrepancy analysis with LLM-assisted correction to ensure factual consistency and completeness.
• In a user study (N=16), participants reported improved effectiveness in identifying knowledge coverage gaps and refining QA sets using GraphQAG’s graph visualization and evidence linking (Q1–Q6 measured; detailed Fig 7).
• GraphQAG supports iterative multi-level assessment: individual QA pair evidence grounding and reasoning inspection, as well as collection-level diagnostics like coverage and redundancy.
• Expert feedback prioritized four core quality dimensions: Knowledge Coverage, Reasoning Complexity, Evidence Grounding, and Non-redundancy, which guided system design and user interactions.
• Targeted graph-based refinement enabled users to add, revise, or delete QA pairs based on visualized KG structures and supporting evidence, overcoming limitations of one-step automatic generation.

Methodology — deep read

The paper’s methodology follows a stepwise end-to-end process designed for human-in-the-loop QA pair generation from long documents.

1. Threat Model & Assumptions: The adversary model is not explicitly defined as this is not a security paper. Instead, the assumptions focus on user expertise and the complexity of long document knowledge representation with multi-entity, multi-hop relations. The system assumes users want to generate comprehensive, trustworthy QA data from such documents.

2. Data: Input documents are arbitrarily long text segmented into semantically coherent paragraphs. Entities and relations are extracted using GraphRAG on these segments, producing a document-level knowledge graph. The dataset size and domains are not fixed since this is a system/framework paper. Labels correspond to entity/relation mentions and evidence passages.

3. Architecture/Algorithm: GraphQAG builds the document KG by merging semantically equivalent entities across paragraphs, forming nodes and edges with loaded source passage links (R1). PageRank with paragraph priors ranks entity importance; Personalized PageRank (PPR) performs structural relevance to retrieve local subgraphs around key entities controlling hop count (1-5) for reasoning complexity (R2, R3). Each subgraph (reference subgraph) encodes selected edges and entities to guide LLM QA generation via a prompt template including question specification (R4). After generation, reverse verification reconstructs the QA subgraph and compares it with the reference to classify discrepancies (match, omission, addition, substitution, irrelevant or indeterminate facts) and uses an LLM to correct QA pairs accordingly (R5, R6).

4. Training Regime: The LLM used for generation and correction is not explicitly named or trained anew; it appears to be used in a few-shot or zero-shot prompting manner guided by system-constructed subgraphs and constraints. No hyperparameters or epochs are reported, as the focus is on integration and interaction rather than model training from scratch.

5. Evaluation Protocol: The system evaluation includes a user study with 16 participants (varying expertise), and two detailed case studies plus expert interviews. Quantitative user feedback covers system effectiveness and usability via Likert-scale surveys on QA pair set quality dimensions (Q1–Q10). Qualitative insights arise from expert interviews on workflows, quality goals, and system requirements. There is no mention of automatic linguistic metrics or adversarial testing. The evaluation emphasizes human-centered assessment rather than purely automatic benchmarks.

6. Reproducibility: The paper does not explicitly mention code or dataset release. The knowledge graph construction uses GraphRAG; graph ranking and retrieval use standard algorithms (PageRank, PPR). The LLM prompting workflow and visual components are custom but detailed enough for replication. However, reproducibility is limited by the unspecified LLM backbone and proprietary user interface components.

Concrete example: Given a long document, the system first segments it into paragraphs, extracts entities and relations with GraphRAG, merges duplicates, and builds a KG. PageRank ranks entities, e.g. "entity A" is highly ranked. PPR retrieves all nodes within 3 hops of "entity A", constructing a local subgraph of connected facts. This subgraph and source paragraphs form the input specification to an LLM prompt which returns a QA pair (question + answer). Reverse verification compares the generated QA’s inferred fact subgraph back to the original subgraph, detects a missing relation between two entities, and triggers the LLM-based correction process, which adds the missing information in a revised QA pair. The user views this in the visual interface, examines uncovered entities, and chooses to regenerate QA for those graph areas. This interactive feedback cycle iterates to progressively build a comprehensive, evidence-grounded QA set from the document.

Technical innovations

• Integration of document knowledge graph construction with LLM-based question-answer pair generation constrained by graph substructures and evidence passages, improving global knowledge coverage and multi-hop reasoning.
• Use of paragraph-prior PageRank and Personalized PageRank to identify key entities and structural graph relevance, enabling explicit control of reasoning complexity via local subgraph retrieval.
• A novel reverse verification technique reconstructing QA-reference subgraphs from generated QA pairs and comparing them to original subgraphs to identify and correct factual inconsistencies using LLM-based editing.
• A coordinated visual analytics framework linking knowledge graphs, evidence passages, QA pairs, and quality assessment dimensions in an interactive interface to support iterative generation, inspection, and refinement.

Baselines vs proposed

• User study effectiveness metrics (Q1–Q6) show majority of participants agree GraphQAG supports knowledge coverage identification and QA refinement versus their prior manual or automatic QAG methods (specific numerical scores not detailed).
• Expert evaluations confirm superiority over automatic one-step QAG baselines in enabling iterative targeted refinement and evidence-grounded QA set construction.

Figures from the paper

Figures are reproduced from the source paper for academic discussion. Original copyright: the paper authors. See arXiv:2607.27182.

Fig 1: The interface of GraphQAG. A The Control Panel allows users to upload documents and adjust the system parameters for QAG. B The Document

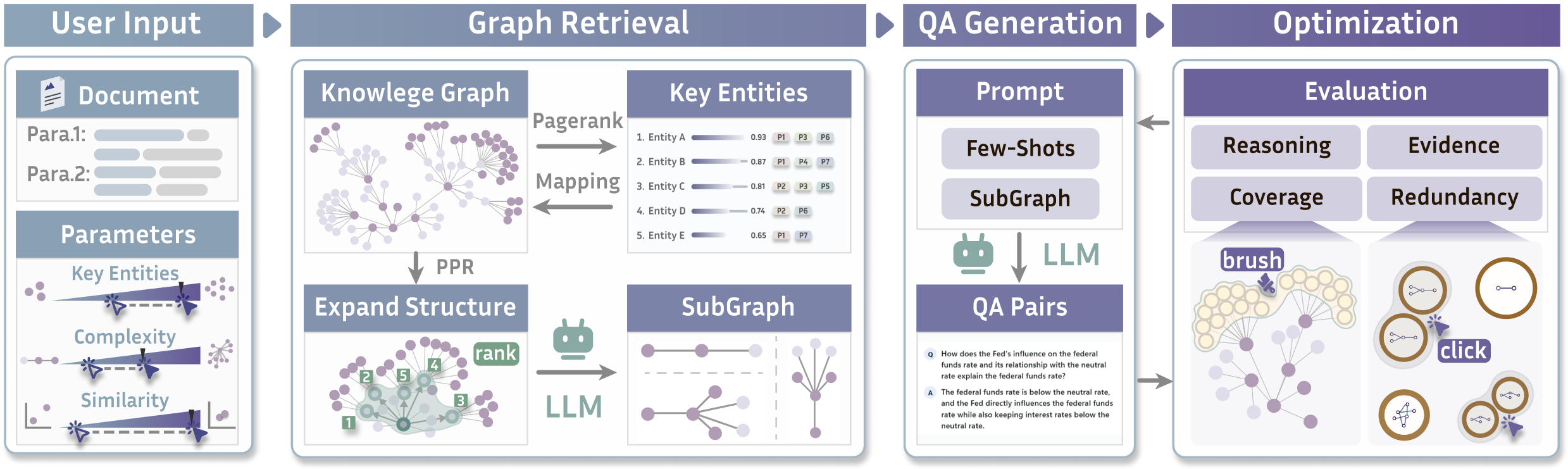

Fig 2: The pipeline of GraphQAG. Given a source document and user-specified generation parameters, the system constructs a document KG, identifies

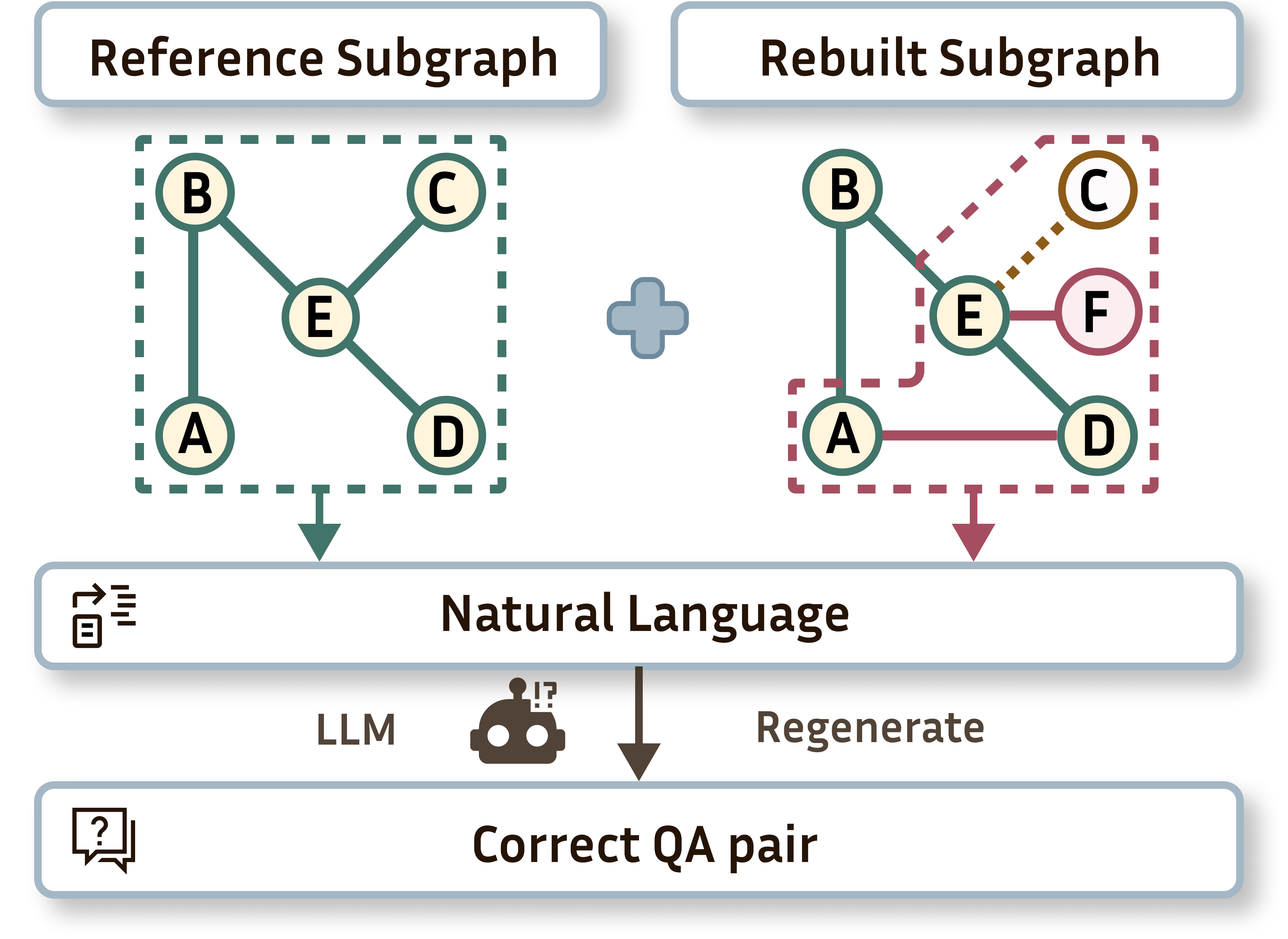

Fig 3: Comparison and repair of QA subgraphs. The

Fig 4: A The Knowledge Map organizes entities by source paragraph and highlights a selected reference subgraph, and users can explore the reasoning

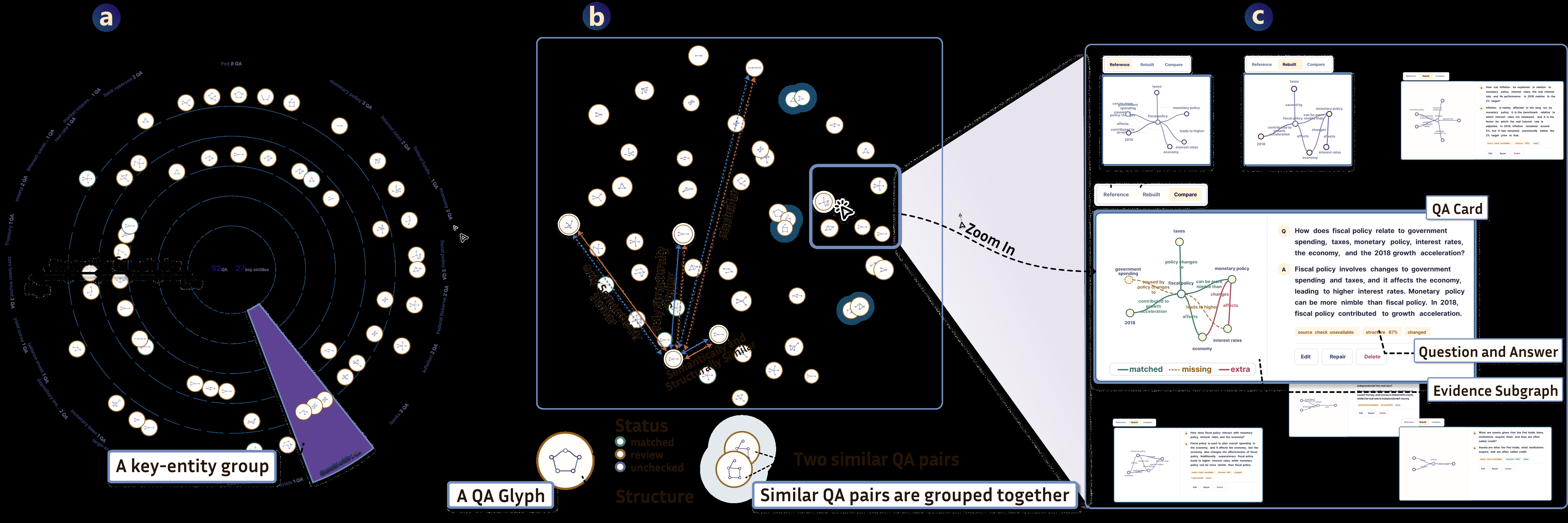

Fig 5: The QA Space supports progressive inspection of a QA pair set at three semantic zoom levels. a The Distribution Level groups QA glyphs by key

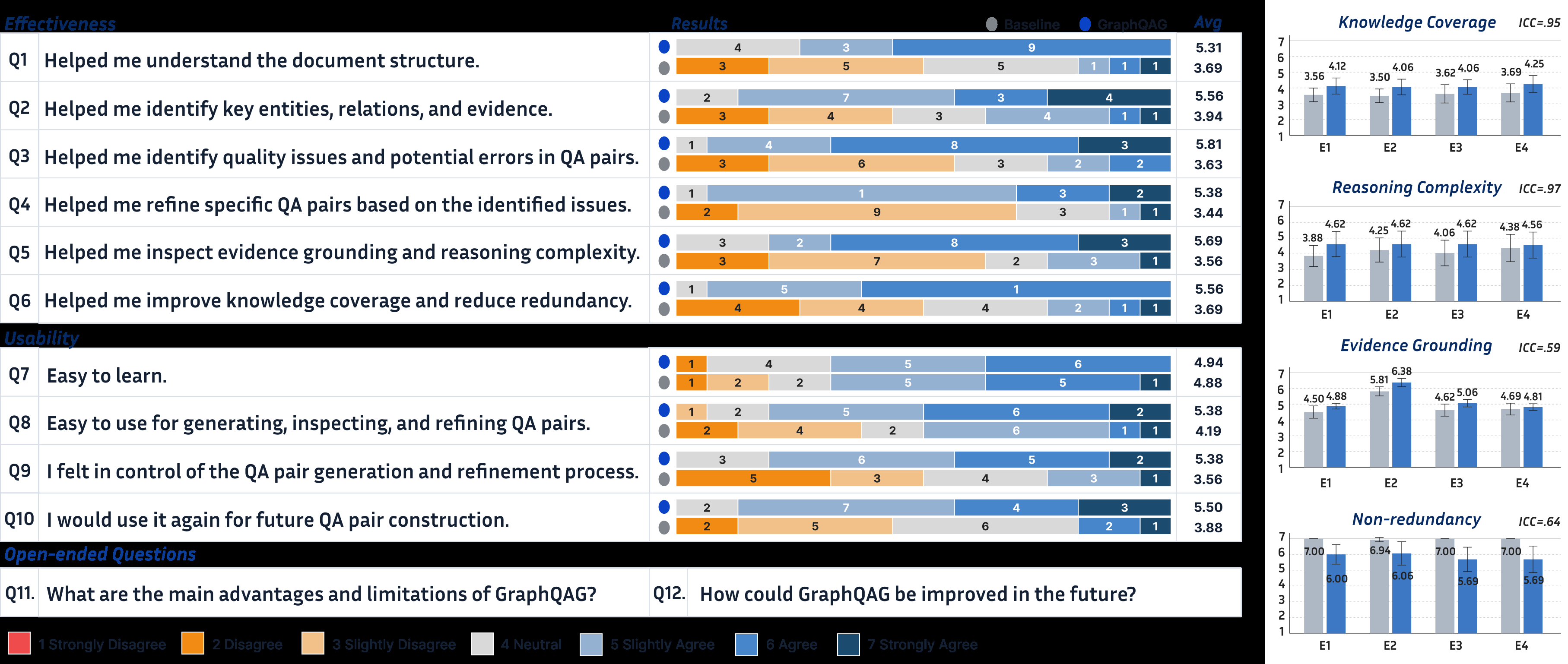

Fig 6: User study results. The left panel summarizes participants’ responses on Effectiveness (Q1–Q6) and Usability (Q7–Q10). Paired stacked bars show

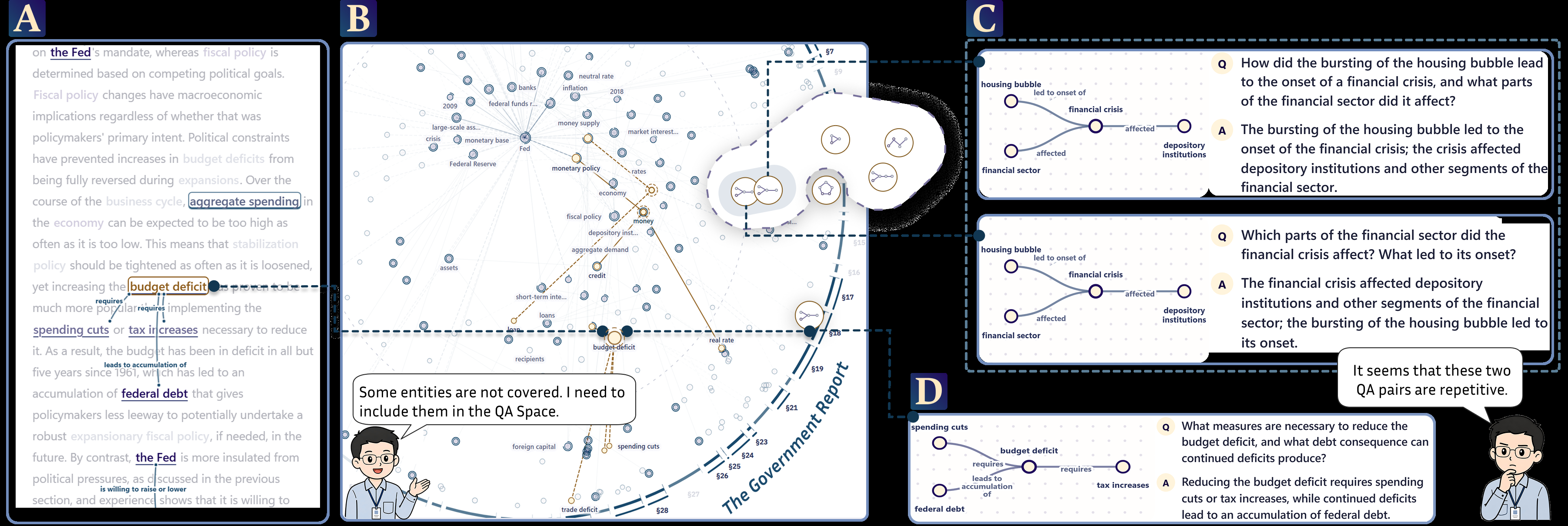

Fig 7: Case 1: Charting knowledge gaps for targeted QA refinement. A P8 identifies uncovered entities in the Document View.

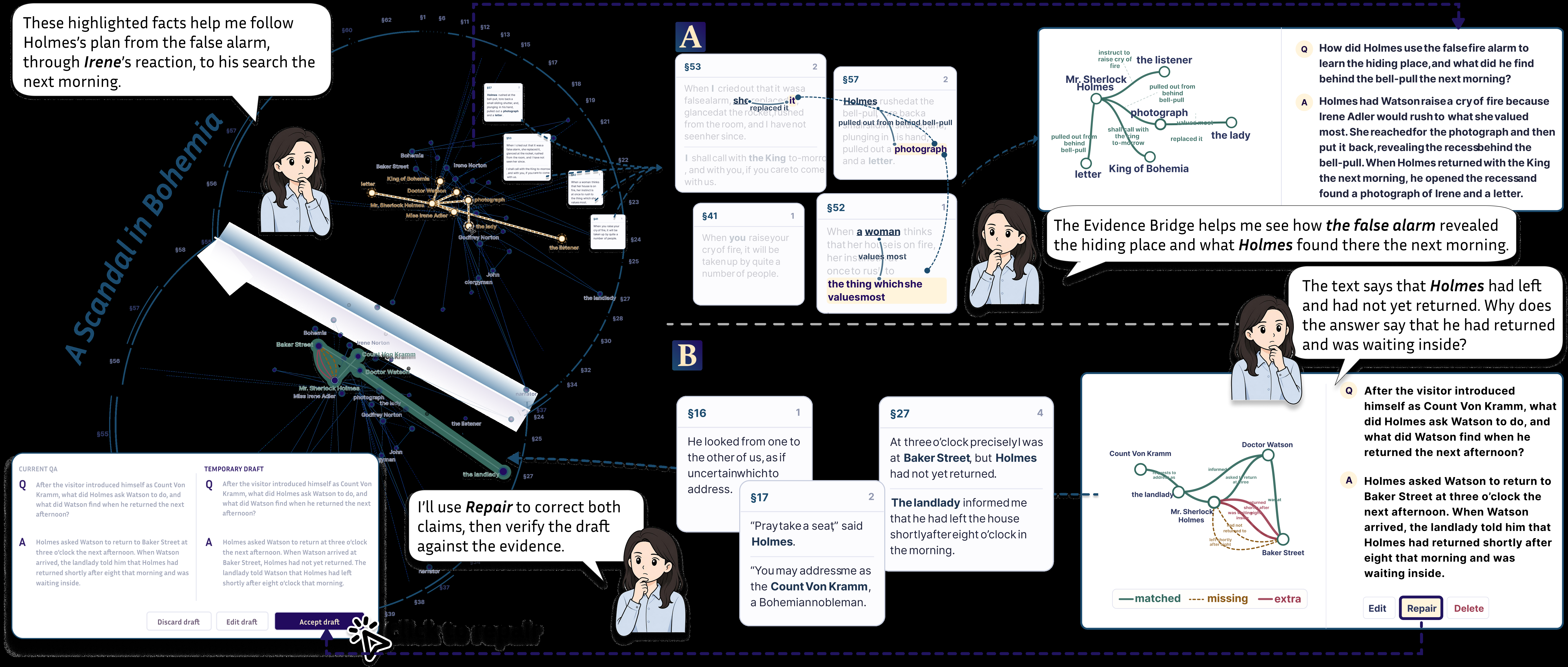

Fig 8: Case 2: Constructing and inspecting cross-paragraph QA pairs. A P15 explores the Knowledge Map and selects facts to build a reasoning structure.

Limitations

• No direct comparison with automatic or SOTA QAG models in terms of linguistic metrics or generation quality reported.
• LLM model details, training or prompting specifics are not fully disclosed, limiting reproducibility and assessment of generalizability.
• User study sample size (16 participants) and case studies are relatively small, limiting quantitative generalizability.
• Evaluation lacks adversarial testing or robustness checks against noisy or contradictory input documents.
• System depends on quality of entity/relation extraction via GraphRAG, which may introduce errors or miss knowledge affecting later stages.
• Visual analytics interface design may require user training and may not scale efficiently to extremely large document KGs.

Open questions / follow-ons

• How does GraphQAG performance and user efficiency scale with increasing document length and KG size, especially for documents with dense relational information?
• What are the impacts on QA pair quality and coverage when applying different LLM backbones or generation prompting strategies within the GraphQAG framework?
• Can the reverse verification and LLM-based correction process be fully automated with confidence thresholds to reduce human-in-the-loop demands?
• How do domain-specific variations (e.g., biomedical vs legal documents) affect entity/relation extraction quality and downstream QA generation in GraphQAG?

Why it matters for bot defense

For bot-defense and CAPTCHA practitioners, GraphQAG’s methodology offers a structured approach to generating high-quality, comprehensive question-answer pairs grounded in long, complex documents with interconnected entities. Its use of knowledge graphs to explicitly model multi-hop relational knowledge and its interactive visual analytics for QA inspection and refinement can inspire techniques to build robust challenge sets that require deep semantic understanding and multi-entity reasoning—qualities essential in CAPTCHAs that resist automated solving by shallow pattern-matching bots. The subgraph-guided QA generation approach, combined with rigorous reverse verification and evidence linking, provides a framework for creating verifiable and diverse QA pairs that cover complex knowledge structures, potentially improving the security and diversity of question-based challenges. Additionally, insights from the human-in-the-loop iterative refinement paradigm could inform the design of CAPTCHA content pipelines where expert review augments automated generation to maintain challenge quality against evolving adversarial attacks.
