When Structured Sparse Autoencoders Learn Consistent Concepts Across Modalities

Source: arXiv:2607.08605 · Published 2026-07-09 · By Weiduo Liao, Yunqiao Yang, Ying Wei

TL;DR

This paper addresses a key limitation in sparse autoencoders (SAEs) when applied to vision-language models (VLMs): vanilla SAEs learn concept features that are often polysemantic and fragmented spatially in the visual modality. The authors propose a Structured Sparse AutoEncoder (S2AE) that incorporates structural regularization enforcing both spatial and semantic coherence for visual concepts. This is achieved by grouping image patches based on combined Transformer attention similarity and spatial proximity, then imposing exclusive sparsity across groups for concept disentanglement and group sparsity within groups for intra-region consistency.

Evaluated on the Qwen2.5-VL-7B-Instruct VLM, S2AE yields a 6.06% average improvement in semantic alignment (mean Intersection-over-Union, mIoU) for visual concept coverage and substantially improves representational efficiency with a 60.81-point reduction in the SAE latent l0 norm while maintaining reconstruction quality above 99% explained variance. Beyond vision, the structured sparsity improves multimodal features’ semantic consistency and monosemanticity scores by around 3% across both modalities, demonstrating more coherent and disentangled representations. A novel hierarchical semantic synthesis pipeline is proposed for automated cross-modal interpretability of SAE features. Overall, the paper offers a principled mechanism to obtain structurally grounded, monosemantic concept features in multimodal models.

Key findings

• S2AE improves semantic alignment of visual concepts by 6.06% mIoU on average vs vanilla SAE on Qwen2.5-VL-7B-Instruct.
• Representational efficiency improves substantially, reducing SAE activation l0 norm by 60.81 points, indicating sparser latent codes.
• Reconstruction fidelity remains near perfect with explained variance exceeding 99%, confirming minimal loss of information.
• S2AE increases cross-modal semantic consistency score by 4.3% at layer 5 and raises monosemanticity scores by 3.08% on average across modalities.
• Visual patch grouping combining Transformer attention similarity and spatial proximity leads to more coherent concept regions than either alone.
• Exclusive sparsity regularization encourages SAE features to specialize to individual visual regions, reducing cross-region polysemanticity.
• Group sparsity regularization enforces consistent activation patterns within each visual region, enhancing intra-region semantic coherence.
• Hierarchical interpretation pipeline achieves 98.8% successful concept identification rate on masked visual activations, outperforming 66.4% direct summarization baseline.

Threat model

The paper is not focused on security. The implicit assumption is a benign interpretability setting where the adversary is a model analyst seeking to uncover monosemantic interpretable features from a vision-language model's hidden representations. The adversary can extract intermediate activations and apply autoencoding but cannot alter or control the model or data. There is no explicit adversarial threat model with malice or evasion considered.

Methodology — deep read

The threat model assumes an interpretability scenario aiming to uncover coherent monosemantic concept features within large vision-language model representations. The adversary is not explicitly modeled as malicious but assumed to analyze internal representations via SAEs.

Data provenance uses the Qwen2.5-VL-7B-Instruct model as the VLM backbone. Evaluation uses curated image datasets from prior work hosted on Hugging Face, with synthetic captions generated by Qwen3-VL-8B-Instruct for multimodal alignment. This affords a large set of paired image-text samples for concept interpretation.

Architecturally, the method builds on standard sparse autoencoders—linear encoder/decoder layers mapping input latents x to sparse feature code z and back, optimized for reconstruction error plus sparsity regularization (L1 or Top-K). The novel component is the structured sparsity regularization applied to the latent SAE activations restricted to visual patch groups. Visual patches are clustered into regions G using agglomerative clustering, based on a combined adjacency matrix encoding Transformer-layer-averaged bidirectional attention similarity and spatial proximity with parameter alpha controlling their relative weight.

Within each visual group, SAE activations per feature are aggregated into group-level activation profiles using an L2 norm. Two complementary regularizers are introduced: an exclusive sparsity loss encouraging each SAE feature to activate predominantly in at most one group (inter-group disentanglement), and a group sparsity loss encouraging each visual group to activate only a sparse subset of SAE features (intra-group consistency). These augment the vanilla SAE loss with reconstruction and sparsity terms. Binarization via a Straight-Through Estimator is applied on activations before regularization to mitigate shrinkage biases.

Training regimes follow typical SAE optimization protocols; specific epoch counts, batch sizes, and hardware details are not given explicitly in the paper or are unclear. Hyperparameters lambda_es and lambda_gs control the weighting of structural regularizers, tuned empirically.

Evaluation metrics include semantic alignment measured by patch-level Intersection over Union (mIoU) between SAE feature activation masks and ground-truth semantic clusters, representational efficiency via latent l0 norm (activation count), reconstruction fidelity via explained variance (R^2), and monosemanticity and semantic consistency scores quantifying whether features represent single concepts consistently across vision and language modalities. Ablations compare clustering with attention-only, spatial-only, or combined affinities, and structural regularization variants.

A hierarchical inference pipeline interprets learned SAE features: masked image references activating a feature are converted to visual descriptions by a VLM, masked text references converted to textual descriptions by an LLM, and then combined and summarized by the LLM to yield modality-specific concept explanations and cross-modal consistency judgments.

The authors provide code repository and SAE visualization demos to aid reproducibility. Some details such as exact training hyperparameters and seeds are not fully specified, plus the multi-modal evaluation dataset is synthetic or derived from public sources.

Technical innovations

• Visual patch grouping combining Transformer attention similarity and spatial proximity to define semantically coherent visual regions for regularization.
• Structured sparsity regularization decomposing the SAE latent feature matrix into exclusive sparsity across groups and group sparsity within groups to enforce concept disentanglement and intra-region consistency.
• Binarization of latent activations with a Straight-Through Estimator to focus regularization on activation frequency rather than magnitude, reducing shrinkage bias.
• Hierarchical semantic synthesis pipeline using separate VLM and LLM steps to reliably interpret multimodal SAE features and assess cross-modal consistency.

Datasets

• Qwen2.5-VL-7B-Instruct model hidden representations — size unspecified — model internal
• Image evaluation dataset from Zhang et al. (2025) hosted on Hugging Face: lmms-lab/sae-sample-cache-dataset — unspecified size — public
• Synthetic textual captions generated by Qwen3-VL-8B-Instruct for these images

Baselines vs proposed

• Vanilla SAE: visual semantic alignment (mIoU) = 0.516 vs S2AE: 0.594 at layer 15
• Vanilla SAE: latent l0 norm not given but S2AE reduces this by 60.81 points
• Vanilla SAE explained variance > 99% (similar for S2AE)
• Vanilla SAE monosemanticity score improved by +3.08% on average with S2AE across modalities
• Direct concept summarization baseline identification rate: 66.4% vs hierarchical synthesis pipeline identification rate: 98.8%

Figures from the paper

Figures are reproduced from the source paper for academic discussion. Original copyright: the paper authors. See arXiv:2607.08605.

Fig 1: Visualization of SAE activation masks. SAE is trained on Qwen2.5-VL-7B-Instruct’s layer 5. Three

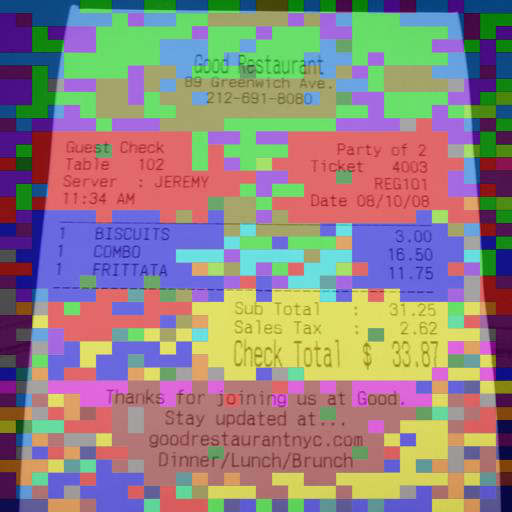

Fig 2 (page 2).

Fig 3 (page 2).

Fig 2: Visualization of clustering according to different affinity characterization: a) only the attention similarity, b)

Fig 5 (page 7).

Fig 6 (page 7).

Fig 7 (page 7).

Fig 8 (page 7).

Limitations

• Dataset details and size for training and evaluation are not fully specified, which may affect reproducibility and generality.
• Only evaluated on a single large VLM backbone (Qwen2.5-VL-7B-Instruct); generalization to other architectures or smaller models is unclear.
• No explicit adversarial or robust evaluation to test model interpretability under adversarial or distribution shift scenarios.
• Structural regularization hyperparameters require tuning and may depend on clustering quality; robustness to hyperparameter choices is not fully studied.
• Paper truncates some experimental details (such as exact training duration, batch size, seed protocols), limiting full method replication.
• Interpretability evaluation still relies on proxies like mIoU and automatic semantic synthesis, which may not fully capture true human concept understanding.

Open questions / follow-ons

• How well does S2AE generalize to diverse VLM architectures with different attention mechanisms and patch representations?
• What is the impact of structural regularization hyperparameters (lambda_es, lambda_gs, alpha) on interpretability robustness and downstream task performance?
• Can the structured sparse features discovered improve practical downstream applications, e.g., explainable multimodal reasoning or retrieval?
• How would the approach perform under adversarial perturbations or domain shifts affecting the patch clustering and SAE feature consistency?

Why it matters for bot defense

For bot-defense and CAPTCHA practitioners, this paper provides a rigorous methodology to extract sparse, consistent, and interpretable multimodal concept features from large vision-language models. This could aid in mechanistic interpretability to understand what visual and textual features a model relies on for multimodal decisions—valuable for detecting potential failure modes or manipulations. The structured sparsity approach encourages coherent spatial and semantic groupings, which can help isolate distinct concepts underpinning model predictions rather than ambiguous or mixed features. Furthermore, the hierarchical semantic synthesis pipeline offers a practical framework for automated interpretation and consistency verification of multimodal features, potentially informing defenses that rely on semantic concept grounding. However, the approach focuses on improving concept disentanglement for interpretability and does not directly address adversarial robustness or user interaction. Adapting structured sparse feature learning to incorporate adversarial analysis or dynamic CAPTCHA challenge generation based on robustly interpretable concepts could be a promising extension. Overall, bot-defense engineers should view this as an advancing step toward more explainable multimodal feature representations, a foundation that could assist in diagnosing and refining multimodal systems used in bot-detection contexts.
