High-temperature operation of III-nitride high-electron-mobility transistors
Source: arXiv:2607.05314 · Published 2026-07-06 · By Yi-Chen Liu, Jacklyn Zhu, John Niroula, Hridibrata Pal, Tomas Palacios, Savannah R. Eisner
TL;DR
This paper provides an in-depth review and analysis of the high-temperature operation of III-nitride high-electron-mobility transistors (HEMTs), focusing primarily on GaN-based devices. The motivation arises from the need for electronic components that can reliably function under extreme temperatures exceeding those tolerable by silicon and other narrow bandgap semiconductors. The authors discuss how material properties, device architecture—including barrier and channel layers, substrate choice, passivation, gate and contact metallization—and device geometry influence thermal stability and performance. A key focus is bridging the gap between demonstrated device lifetimes and operating temperatures versus the requirements of harsh environments such as hypersonic flight (>800°C sustained), automotive (200–300°C), and planetary missions. The review collates experimental results showing variation in 2DEG density, mobility, threshold voltage, leakage, and degradation mechanisms across different device structures and materials at elevated temperatures up to ~1000°C.
The paper highlights novel barrier/channel stacks like InAlN and ScAlN that improve thermal stability over traditional AlGaN, passivation strategies to mitigate strain and surface traps, and emphasizes the thermal limitations of common Ni/Au gate metallization. It also stresses the importance of substrate thermal/electrical properties on performance and endurance, especially beyond 300°C where mobility degradation dominates. Although several promising approaches for gate metals, dielectrics, and device geometry exist, long-term (>1000 hours) operational stability remains underexplored at temperatures above 400–500°C. The authors identify critical open challenges in materials engineering and gate/contact reliability toward enabling mission-critical high-temperature electronics.
Key findings
- AlGaN barrier layers suffer thermal instability above ~400°C, leading to strain relaxation and increased on-resistance, whereas InAlN and ScAlN exhibit better stability and allow device operation near or above 500°C (Fig. 4c-e).
- AlGaN-channel HEMTs demonstrate roughly half the current degradation and nearly 3× lower on-resistance at 300°C compared to GaN-channel devices, attributed to reduced trap formation and higher Schottky barrier height.
- Passivation with dense PECVD Si3N4 can suppress strain relaxation and preserve 2DEG conductivity up to 500°C, whereas ALD Al2O3 passivation may exacerbate strain relaxation depending on deposition method and thermal stress environment.
- Common Ni/Au Schottky gate metallization degrades structurally starting at 325°C, with voids, alloying, and metal migration severely increasing gate leakage and reducing device lifetime (Fig. 5a).
- Refractory gate metals such as Pd/TaSi2, W, and IrOx show improved morphological stability and electrical characteristics at 500–800°C, but systematic long-duration reliability data is lacking.
- HEMTs on high-resistivity SiC substrates exhibit more stable sheet carrier densities and leakage currents at elevated temperatures compared to Si substrates, where thermally generated carriers induce measurement artifacts above 400°C.
- Shorter gate lengths and circular HEMT device layouts exhibit more robust high-temperature operation up to 600°C due to improved electric field distribution and suppression of sidewall traps.
- Despite some devices demonstrating peak operation temperatures near 1000°C, a critical gap exists in sustained operation beyond 400–500°C for durations exceeding 1000 hours, limiting applicability to extreme mission profiles (Fig. 1b).
Threat model
n/a — This work focuses on material and device physics of high-temperature electronics, without addressing adversarial threat models or security attacks.
Methodology — deep read
The paper is primarily a comprehensive review and experimental study aggregation focused on high-temperature III-nitride HEMTs. The threat model implicitly considers extreme environmental scenarios where electronics may face elevated temperatures and radiation but does not directly involve adversarial security threats. Instead, it addresses failure mechanisms due to thermal, mechanical, and material degradation.
Data are compiled from multiple prior experimental works, including device performance measurements (2DEG density, mobility, current, threshold voltage, on/off ratios) as a function of temperature from room temperature up to ~1000°C under various conditions. Authors analyze material stability data for barrier layers (AlGaN, InAlN, ScAlN, AlN) and channel materials (GaN, AlGaN channel) from epitaxial growth and electrical characterization reports. Studies on substrates (Si, SiC, sapphire), passivation layers (PECVD Si3N4, ALD Al2O3), and gate metallization (Ni/Au, Pt, Pd, W, IrOx) provide insights into thermal robustness.
Device architecture discussions compare depletion-mode vs enhancement-mode HEMTs, including p-GaN gates, recessed gates, fluorine treatments, and MISHEMT structures (metal–insulator–semiconductor). Device geometries such as linear vs circular HEMTs and gate length scaling inform electric field and leakage behavior at high temperature. Contact metallurgy and interdiffusion are studied with microscopy and spectroscopy techniques.
Training and model optimization are not relevant; instead, evaluations focus on electrical metrics and material characterization. High-temperature stress tests range from hours to hundreds of hours under controlled atmospheric conditions (air, nitrogen, inert). Metrics include drain current stability, transconductance, gate leakage, threshold voltage shifts, and on/off current ratios.
Comparisons are drawn through plotting device metrics versus temperature (Fig. 4), showing normalized mobility, current, 2DEG sheet density, etc. Additionally, lifetime and degradation rates are compared across materials and device structures. Thermal cycling and prolonged aging studies evaluate stability. The review points out the scarcity of data for ultra-long-duration operation at >500°C, highlighting a gap in reproducible benchmarks and standardized test protocols.
While the paper summarizes prior works, it uses examples such as AlGaN/GaN HEMTs with varied passivation layers undergoing 500-hour thermal aging at 300°C with electrical characterization before and after stress. It also discusses in-situ TEM studies of contact metallurgical changes at elevated temperature. Experimental insights are supplemented with theoretical reasoning on strain, thermal expansion mismatch, and polarization effects.
No public code or dataset releases apply, as this is a materials/device physics survey combined with data collation from literature. Reproducibility depends on consistent epitaxial growth and device processing methods documented in referenced sources.
Technical innovations
- Identification of InAlN and ScAlN barrier layers as thermally more stable alternatives to conventional AlGaN for >400°C operation.
- Demonstration that dense PECVD Si3N4 passivation can enhance thermal stability by suppressing strain relaxation and preserving 2DEG density up to 500°C.
- Systematic documentation of Ni/Au gate metallization degradation pathways at elevated temperatures, motivating development of refractory metal gate stacks.
- Analysis of device geometry effects showing circular HEMTs improve high-temperature leakage characteristics by suppressing sidewall-induced traps.
- Evaluation of metal–insulator–semiconductor HEMTs (MISHEMTs) with ALD dielectrics for improved gate leakage and structural stability at 600°C.
Datasets
- Various literature-reported GaN HEMT high-temperature electrical measurements — aggregated from multiple publications with device-level performance data from ambient to ~1000°C — no public centralized dataset
Baselines vs proposed
- AlGaN barrier: stable operation up to ~400°C vs InAlN barrier: stable operation up to ~1000°C
- GaN channel: 100% current degradation at 300°C vs AlGaN channel: ~50% current degradation under same conditions
- Ni/Au gate: significant leakage increase and morphological degradation starting at 325°C vs Pd/TaSi2 gate: stable on/off ratio at 800°C after 1 hour
- Unpassivated AlGaN/GaN HEMT: strain relaxation above 250°C vs passivated with dense PECVD Si3N4: strain suppression and 2DEG retention up to 500°C
- Linear HEMT off-current: 3 orders of magnitude higher at 300°C vs circular HEMT off-current: suppressed leakage and functional up to 600°C
Figures from the paper
Figures are reproduced from the source paper for academic discussion. Original copyright: the paper authors. See arXiv:2607.05314.

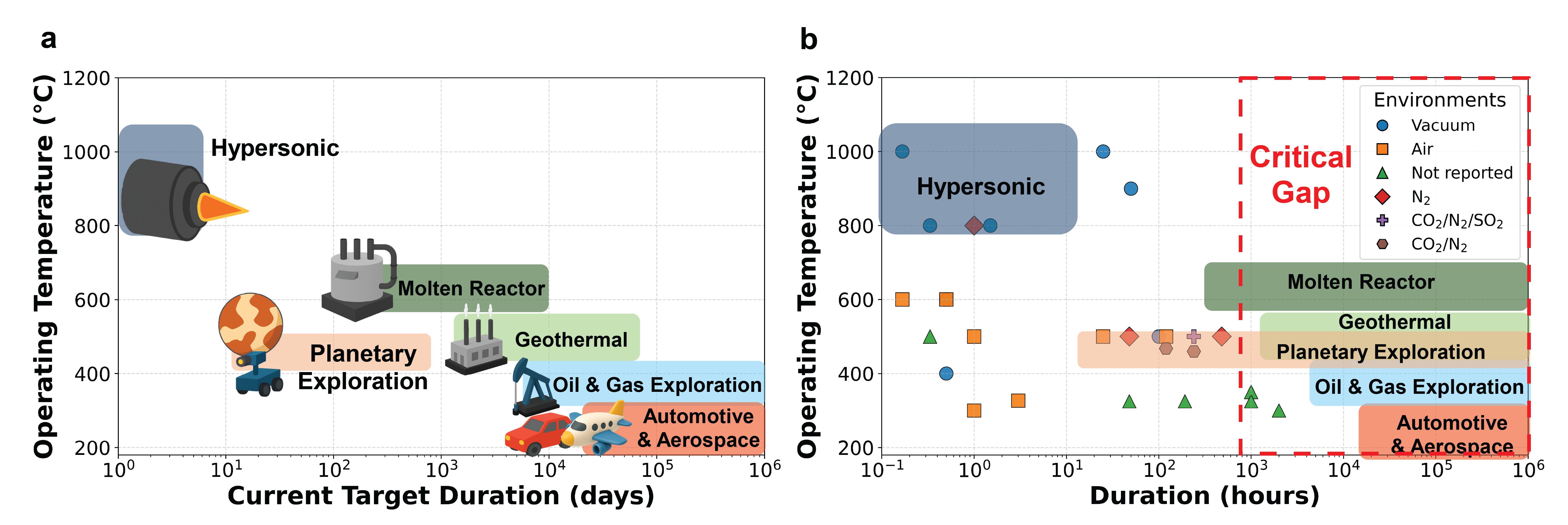

Fig 1: Temperature and duration requirements for extreme-environment applications and comparison with
Fig 2: Comparison of III-N HEMT device structures and reported maximum operating temperatures a) D-mode
Fig 3: Device- and circuit-level failure mechanisms and performance limitations in III-N HEMT electronics a)

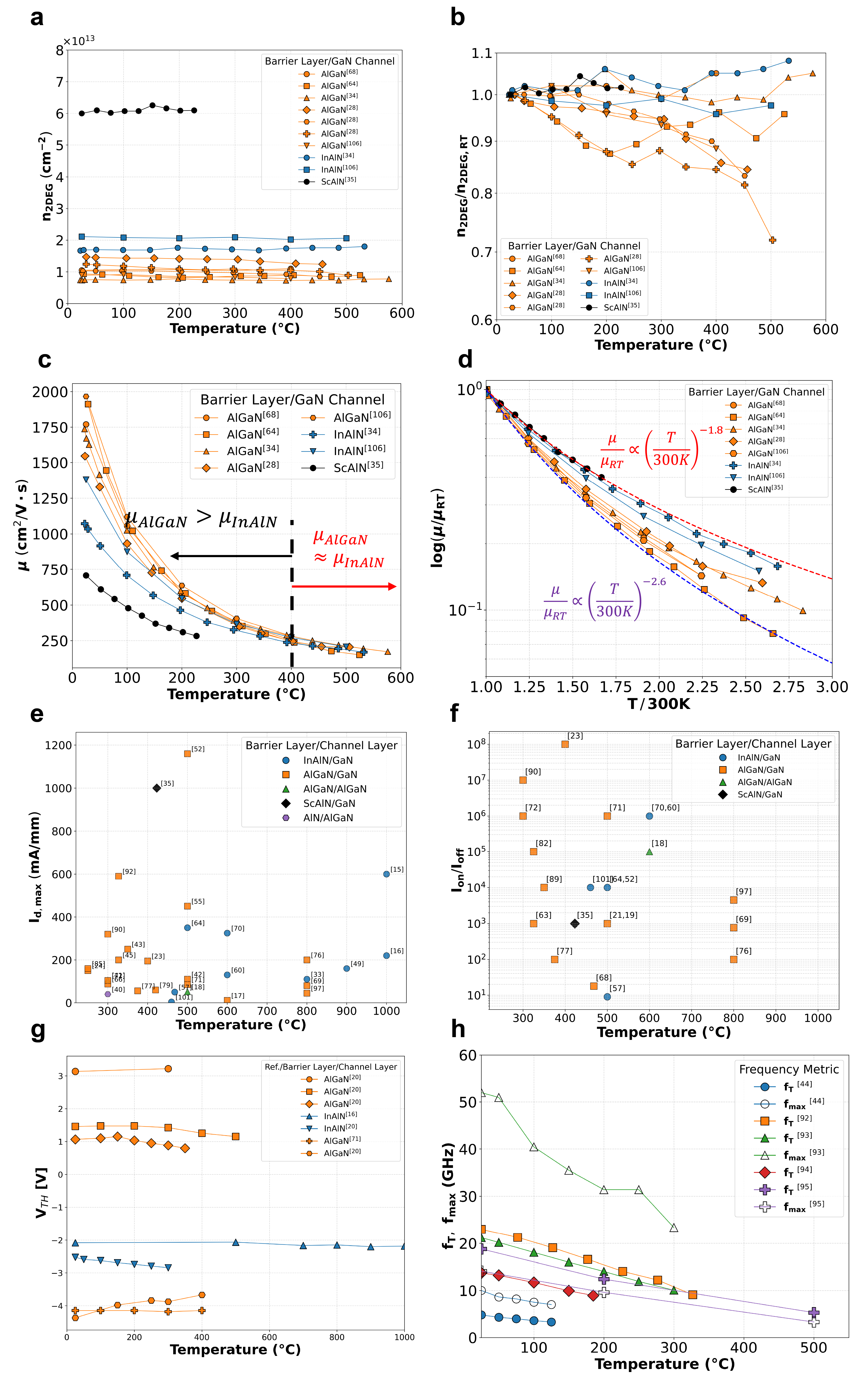

Fig 4: Temperature dependent electrical performance of III N HEMTs with different barrier and channel layers a)

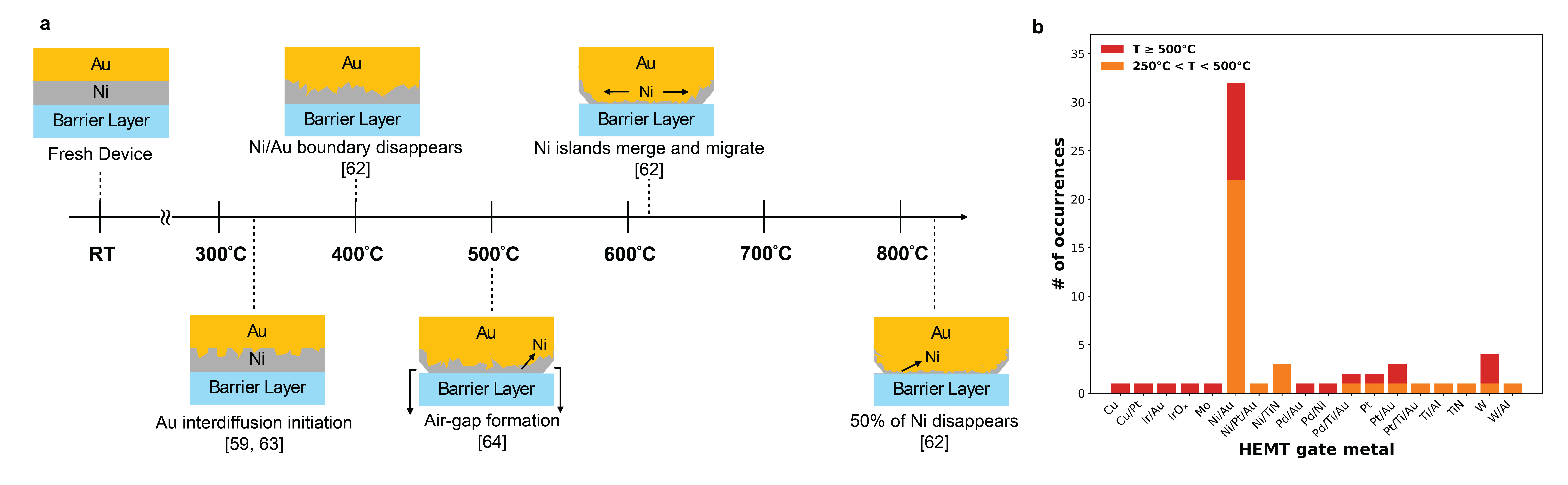

Fig 5: Thermal degradation pathways of Ni/Au gates and prevalence of gate metal choices in III-N HEMTs a)
Limitations
- Lack of standardized long-term (>1000 hours) high-temperature reliability data across device types and operating conditions, especially >500°C.
- Variations in passivation materials, deposition methods, and thermal stress environments lead to inconsistent results, complicating general design rules.
- Thermal cycling and radiation effects are not comprehensively addressed, limiting understanding of combined environmental stresses.
- Limited demonstrations of functional enhancement-mode (E-mode) devices under extreme temperature, restricting fail-safe logic implementation.
- Many refractory metal gate materials show improved stability but lack systematic electrical characterization and longevity data.
- Substrate effects at high temperature are nuanced and sometimes confounded by measurement artifacts; more controlled investigations are needed.
Open questions / follow-ons
- Can new barrier/channel heterostructures be engineered to simultaneously maximize mobility and high-temperature stability beyond current AlGaN/InAlN limits?
- What comprehensive passivation stacks and thermal stress management techniques can enable >1000 hour stable operation above 500°C?
- How do long-term radiation exposure and thermal cycling synergistically affect device degradation mechanisms in space/planetary environments?
- Can scalable device geometries and contact metallurgies be developed that combine manufacturability with robustness for harsh environments?
