3D Magnetic Field Vectors in Space: Bubbles, Clouds, and Filaments
Source: arXiv:2606.27346 · Published 2026-06-25 · By Mehrnoosh Tahani, Anna Ordog, Jennifer West, Georgia V. Panopoulou, Hiroko Shinnaga, Marijke Haverkorn
TL;DR
This paper addresses a fundamental challenge in astrophysics and Galactic studies: reconstructing full three-dimensional (3D) magnetic field vectors in interstellar space. Magnetic fields critically influence star formation and Galactic evolution, but existing observations often provide only 2D projected components or line-of-sight integrals, limiting physical insight. The authors comprehensively review observational methods—including synchrotron emission polarization, Faraday rotation and tomography, and Zeeman splitting—highlighting how these complementary tracers can be combined to infer 3D magnetic field orientations and strengths across various interstellar structures such as supernova remnants, superbubbles, HII regions, and molecular clouds. The paper emphasizes how the Square Kilometre Array (SKA), particularly in its fourth deployment phase (AA4), will provide transformational improvements in sensitivity, frequency coverage, angular resolution, and rotation measure grid density to enable detailed 3D reconstruction of Galactic magnetic fields for the first time. Through SKA data plus ancillary surveys, researchers will be able to disentangle complex line-of-sight depolarization and Faraday depth structures to reveal the geometry and energetics of magnetic fields shaping the interstellar medium and star formation.
Key findings
- SKA-Low in AA4 will achieve a Faraday depth resolution (𝛿𝜙) as narrow as 0.1 rad m−2, a 10x improvement over current surveys like LoTSS.
- SKA-Mid 2 in AA4 will be sensitive to Faraday depth structures as broad as 110 rad m−2, enabling distinction between multiple Faraday screens and slab-like features.
- SKA-Low’s 5 arcsecond angular resolution at 140 MHz improves spatial detail in diffuse synchrotron emission by a factor of 60 over previous lowest-frequency surveys.
- RM Grid source density expected with SKA1-MID Band 2 exceeds 100 polarized sources per square degree, a 3x increase over ASKAP, enabling denser magnetic field sampling.
- Two prior studies (Tahani et al. 2022a,b) successfully reconstructed 3D magnetic field vectors by combining multiple techniques, demonstrating feasibility but also extreme observational challenge.
- The combination of single-antenna and interferometric data is critical to recover spatial scales from arcseconds up to degrees, necessary for interpreting extended synchrotron and Faraday rotation.
- Observational samples of SNRs have grown substantially (e.g., ~50 new SNRs over 35° by ASKAP, predicted doubled by end of EMU survey), aiding Galactic magnetic field modeling.
- Synchrotron total intensity under equipartition assumptions can estimate magnetic field strength but may overestimate due to breakdown of equipartition at sub-kpc scales per recent simulations.
Threat model
The adversary is an astrophysical observer challenged by fundamental projection and line-of-sight integration effects that obscure the true 3D magnetic field vectors in Galactic interstellar media. Observations yield integrated or partial vector components influenced by depolarization, Faraday complexity, and uncertain distances. The observer cannot directly measure 3D vectors but must infer them by combining multi-frequency polarized emission, Faraday rotation, and Zeeman split spectral line data with auxiliary distance information. The adversary cannot obtain direct, unambiguous measurements of magnetic field vectors in 3D from any single technique.
Methodology — deep read
The authors begin by framing the astrophysical threat model as the need to reconstruct the true 3D magnetic field vectors in various interstellar environments, despite observational projections and line-of-sight integration effects. The adversary (observer) contends with limited direct measurements and must infer geometry from combined diagnostics.
Data discussed spans multiple regimes: radio continuum observations of polarized synchrotron emission, spectro-polarimetry enabling Faraday rotation and tomography, pulsar and extragalactic background source rotation measures, and Zeeman splitting of spectral lines for line-of-sight field strength. Provenance includes existing and forthcoming surveys such as LoTSS, ASKAP’s POSSUM, GMIMS, PEGASUS, and upcoming SKA-Low and SKA-Mid in AA4 configuration. Data sizes vary from thousands of RM measurements (e.g., >55,000 extragalactic sources consolidated) to large diffuse emission maps across wide frequency bands.
Observational architecture centers on extracting the 3D vectors by integrating three main SKA-developed measurement types: (a) polarized synchrotron emission gives the plane-of-sky magnetic field orientation modulo 180° ambiguity; (b) Faraday rotation and tomographic reconstructions resolve line-of-sight magnetic field components and disentangle multiple Faraday screens using broadband spectro-polarimetry over wide frequency ranges; (c) Zeeman effect measurements provide model-independent line-of-sight field strength in atomic and molecular clouds.
A key technical element is the Fourier transform between the polarized intensity as a function of wavelength squared (λ²) and complex Faraday depth spectra, requiring wide and continuous frequency sampling to avoid convolution artifacts (RMSF). SKA’s large bandwidth and dense sampling enable ~0.1 rad m−2 Faraday depth resolution and sensitivity to Faraday structures spanning 0.1 to 100 rad m−2 scales.
Training notions do not directly apply, but the authors describe observational strategies including high angular resolution (~5 arcsec at 140 MHz for SKA-Low), combination of interferometric and single-dish data to cover all spatial scales, and cross-correlation with complementary datasets (dust polarization, starlight polarization) to resolve degeneracies and distance ambiguities.
Evaluation is based on simulated and actual data examples illustrating recovery of multiple Faraday screens vs Burn slab models, spatial morphology of bubble shell fields, and correlations of RM Grid points with diffuse emission. This approach includes the development of algorithms to infer 3D vector orientation and strength by jointly analyzing polarization angle rotation, line emission splitting, and dust polarization direction.
Reproducibility is partially constrained by dependence on proprietary or ongoing survey data, but much of the methodology relies on publicly accessible radio astronomy datasets and established Fourier techniques. The paper notes the potential for community data release following SKA operations. No machine learning model training is involved per se, but the multi-technique data integration invites future methodological development parallel to comprehensive SKA data releases.
End-to-end, the approach would take polarized observations of a target supernova remnant or molecular cloud across SKA frequency bands, derive Faraday depth spectra per spatial pixel, identify Faraday screens, correlate these with dust and starlight polarization orientation at known distances, and combine with Zeeman measurements to reconstruct the 3D magnetic vector fields enveloping the object, enabling physical interpretation of star-formation and interstellar medium dynamics.
Technical innovations
- Integration of broadband SKA radio spectro-polarimetry with high-resolution interferometry to resolve Faraday depth structures at 0.1 rad m−2 resolution for 3D magnetic field reconstruction.
- Use of RM Grids with >100 polarized sources per square degree combined with Faraday tomography to disentangle complex line-of-sight magnetic field components in Galactic bubbles and filaments.
- Novel combination of synchrotron polarized intensity, Faraday rotation measurements, and Zeeman splitting data to jointly constrain both magnetic field vector orientation and strength in 3D space.
- Application of multi-frequency depolarization analysis and selective frequency band combinations to probe magnetic field variations at different physical depths (polarization horizons) along the line of sight.
Datasets
- Van Eck et al. RM Catalog — 55,000+ extragalactic source RMs — public
- GMIMS (Global Magneto-Ionic Medium Survey) — 300–1800 MHz polarization data — public
- PEGASUS — All Stokes Polarization survey with Parkes telescope — in progress
- ASKAP POSSUM — polarization survey precursor to SKA — public
- LoTSS DR2 — 120–168 MHz polarization maps over northern sky — public
- SKA1-MID Band 2 RM Grid — projected >100 sources per square degree — future
Baselines vs proposed
- LoTSS Faraday depth resolution (𝛿𝜙) ~1 rad m−2 vs SKA-Low AA4 𝛿𝜙 ~0.1 rad m−2 (10x improvement)
- ASKAP POSSUM RM Grid density ~30 sources/deg² vs SKA1-MID Band 2 ~100+ sources/deg² (3x improvement)
- SKA-Low angular resolution 5″ at 140 MHz vs LoTSS 300″ (factor ~60 improvement)
- Equipartition magnetic field strength estimates overestimate true strength at sub-kpc scales by up to factor few (Dacunha et al., 2025 vs Linzer et al., 2025)
Figures from the paper
Figures are reproduced from the source paper for academic discussion. Original copyright: the paper authors. See arXiv:2606.27346.
Fig 1 (page 1).
Fig 1: Schematic illustration of the limitation of 2D projections. a perpendicular magnetic field vector
Fig 3 (page 4).
Fig 4 (page 4).
Fig 5 (page 4).
Fig 6 (page 4).
Fig 7 (page 4).

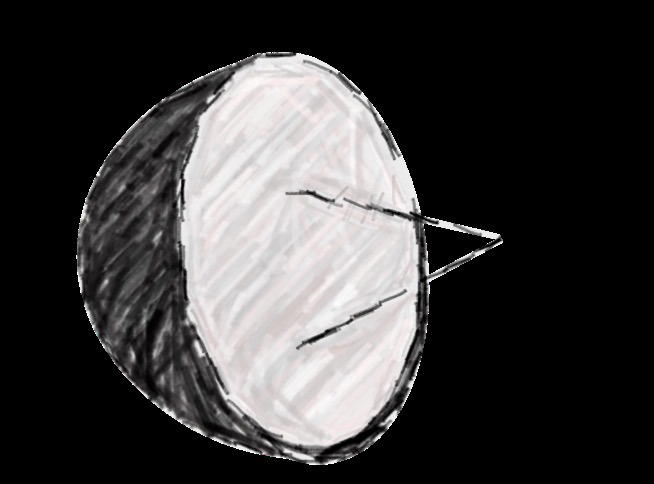

Fig 8 (page 4).
Limitations
- 3D reconstruction methods require assumptions to localize Faraday features in distance, which can be uncertain and model-dependent.
- Distance ambiguities remain an obstacle despite advances in starlight polarization and parallax measurements.
- Depolarization effects at low frequencies limit probing the physical depth — ‘polarization horizon’ phenomenon restricts LOS sampling.
- Equipartition assumptions for synchrotron emission-based magnetic strength estimates are not universal and can be inaccurate at smaller scales.
- Current RM Grids, though improving, remain spatially sparse relative to diffuse emission complexity, leading to interpolation uncertainties.
- Significant observational integration across different instruments and wavelength regimes is needed, complicating data reduction and analysis pipelines.
Open questions / follow-ons
- How to robustly solve the distance localization ambiguities of Faraday rotating structures to improve 3D mapping accuracy?
- What are optimal algorithms for data fusion from synchrotron polarization, Faraday tomography, and Zeeman splitting to constrain 3D magnetic vector fields?
- How does turbulence and small-scale magnetic fluctuations affect integrated polarization and Faraday spectra interpretation?
- Can time-domain or variability information be exploited to separate overlapping Faraday components along the line of sight?
