Attosecond pulse trains from graphene via macroscopic phase-matching in high harmonic generation

Source: arXiv:2606.03945 · Published 2026-06-02 · By Sergio Martín-Domene, Luis Plaja, Carlos Hernández-García

TL;DR

This paper addresses the challenge of generating attosecond pulse trains from solid-state materials, specifically single-layer graphene (SLG), by identifying macroscopic phase-matching conditions in high harmonic generation (HHG). While attosecond pulses are reliably produced in gas-phase HHG due to inherent phase-locking of electron trajectories, solid-state HHG involves complex electronic pathways leading to irregular spectral phases and temporal emission. The authors combine microscopic and macroscopic simulations of HHG in graphene, showing that distinct harmonic contributions—analogous to short- and long-trajectory electron recombinations known from gas-phase HHG—have different far-field divergence properties. By adjusting the position of the graphene sheet relative to the driving laser focus, they selectively suppress long-time recombination contributions with unfavorable phase relationships that cause temporal irregularities. This macroscopic suppression enables the synthesis of regular, positively chirped attosecond pulse trains with temporal quality comparable to gas-phase HHG, overcoming limitations of prior models that used artificial electron dephasing times. The study establishes a general framework for controlling attosecond emission from solids via transverse phase-matching and driving-field waveform engineering, potentially facilitating compact, bright solid-state attosecond light sources.

Key findings

• At low driving intensity (I0 = 5 × 10^10 W/cm^2), moving the SLG target before the laser focus (z0 = -zR) selectively suppresses red-shifted (long-time) harmonic components while enhancing blue-shifted (short-time) components, resulting in cleaner harmonic spectra (Fig. 2a).
• At this low intensity, the temporal harmonic emission synthesized from the filtered harmonics shows a regular pulse train only when placing the SLG before the focus; placing it after leads to irregular waveforms due to long-time contributions (Fig. 2b).
• The red- and blue-shifted harmonic components exhibit distinct divergence properties, with blue-shifted short-time emissions forming low-divergence beamlets optimized by placing SLG before the focus (Fig. 2c).
• At high intensity (I0 = 10^12 W/cm^2), SLG placed before the focus yields a harmonic plateau extending to the 29th order with a clean spectrum leading to attosecond pulse trains of ~760 as duration on-axis (Fig. 3a,b).
• Time-frequency analysis shows macroscopic propagation suppresses long-time electronic recombination pathways associated with imperfect recollisions, resulting in positively chirped attosecond pulses analogous to short-trajectory selection in gases (Fig. 3c).
• Introducing realistic electron decoherence times (~>10 fs) in microscopic calculations has little effect, indicating macroscopic phase matching—not artificial dephasing—accounts for suppression of long-time pathway contributions.
• Positioning the SLG target before the beam focus provides optimal transverse phase matching that selectively enhances short-time contributions, improving temporal coherence and pulse quality via macroscopic wavefront compensation.
• Refocusing the harmonic emission after generation offers an alternative route to select short-time contributions and achieve clean attosecond pulse trains.

Threat model

n/a — The paper addresses fundamental physical limitations and control in solid-state high harmonic generation rather than any adversarial threat. The complexity arises from multiple coherent electron-hole pathways making attosecond synthesis challenging, not from an active attacker.

Methodology — deep read

The authors model high harmonic generation (HHG) in single-layer graphene (SLG) by combining microscopic quantum dynamics with macroscopic propagation and phase-matching effects. The threat model is a fundamental physical scenario rather than an adversarial one: the complexity arises from multiple electron-hole recombination pathways contributing incoherently to HHG, making attosecond pulse synthesis challenging.

1. Microscopic Simulation:

• They use a two-band nearest-neighbor tight-binding model for SLG to derive valence (VB) and conduction band (CB) dispersions.
• The electronic wavefunction in reciprocal space evolves under the semiconductor Bloch equations (SBE), including the time-dependent Hamiltonian with dipole interaction in the length gauge.
• They account for intraband and interband contributions via velocity operator matrix elements.
• Phenomenological decoherence times (T2) are varied, but realistic long decoherence times (~10 fs or more) are used to reflect experiments; they find T2 → ∞ closely reproduces harmonic spectra.
• Driving fields are mid-infrared (3 µm), linearly polarized 28.8 fs pulses with peak intensities either 5 × 10^10 or 10^12 W/cm^2.
• The microscopic HHG emission is computed from the Fourier transform of the dipole acceleration derived from the time-dependent velocity.

2. Macroscopic HHG Propagation:

• The SLG is modeled as a transverse thin target, allowing neglect of longitudinal phase-matching.
• The total far-field harmonic emission at a detector plane is computed by coherently summing contributions from dipoles across the sample, propagated using Maxwell's equations.
• The driving laser is modeled as a Gaussian beam with waist 30 µm and Rayleigh length z_R = 942 µm.
• Position z0 of the SLG relative to the focus (z=0) is varied: before focus (z0=-zR), at focus (z0=0), and after focus (z0=+zR).
• Harmonic spectra and temporal profiles are obtained by Fourier transform after filtering below certain harmonic orders (5th or 17th).

3. Analysis:

• They isolate blue-shifted (short-time) and red-shifted (long-time) harmonic contributions via spectrally resolved emission and divergence measurements.
• Far-field angular divergence is related to transverse phase-matching and wavefront curvature.
• Time-frequency analysis is used to map microscopic and macroscopic time-dependent emission patterns, revealing suppression of long-time incoherent contributions at the macroscopic level when SLG is before the focus.

4. Training regime and hyperparameters are not relevant as this is a simulation physics study.

5. Evaluation uses spectral yield, temporal pulse duration, spectrograms, divergences, and comparison at multiple z0 positions.

6. Code and data not explicitly stated as released; simulations combine well-established tight-binding models and Maxwell propagation codes.

Example end-to-end: For I0 = 10^12 W/cm^2, placing SLG before the focus yields a macroscopic HHG spectrum with a 29th order plateau and a clean harmonic comb whose temporal Fourier synthesis yields an attosecond pulse train with ~760 as duration—confirmed by time-frequency analysis to arise from phase-matched short-time trajectories that are selectively enhanced by transverse wavefront compensation.

Technical innovations

• Identification that macroscopic transverse phase-matching enables selective suppression of long-time electron-hole recombination pathways in solid-state HHG, analogous to short- and long-trajectory selection known from gas-phase HHG.
• Demonstration that positioning the 2D graphene target before the laser focus optimizes wavefront compensation to generate low-divergence short-time harmonics, producing clean attosecond pulse trains without requiring artificial electron decoherence.
• Integration of microscopic semiconductor Bloch equation dynamics with macroscopic Maxwell propagation to reveal how harmonic beam divergence correlates with the temporal emission characteristics and phase-matching.
• Use of driving-field waveform and target position as practical control knobs to tailor the phase-locking and spectral phase, enabling temporal synthesis of positively chirped attosecond pulse trains in solids.

Baselines vs proposed

• Microscopic HHG (T2 → ∞) without macroscopic propagation: irregular temporal waveform and mixed long-/short-time contributions vs macroscopic HHG with SLG before focus: regular attosecond pulse train with 760 as duration (Fig 3b).
• SLG position at focus z0=0: harmonic plateau with complex spectral structure and irregular temporal emission vs SLG before focus z0=−zR: cleaner harmonic spectrum and well-defined temporal attosecond train (Fig 3a,b).

Figures from the paper

Figures are reproduced from the source paper for academic discussion. Original copyright: the paper authors. See arXiv:2606.03945.

Fig 1: Scheme for generating solid-state attosecond pulse trains. An intense mid-IR Gaussian driving beam is focused into

Fig 2: Results for HHG in SLG driven by a low-intensity Gaussian beam with peak intensity I0 = 5 × 1010 W/cm2. (a)

Fig 3 (page 3).

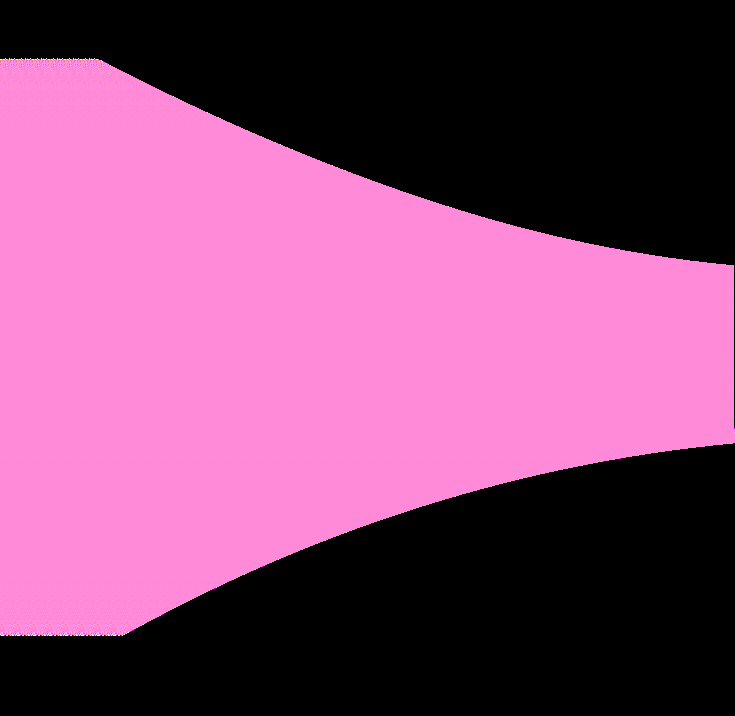

Fig 4 (page 3).

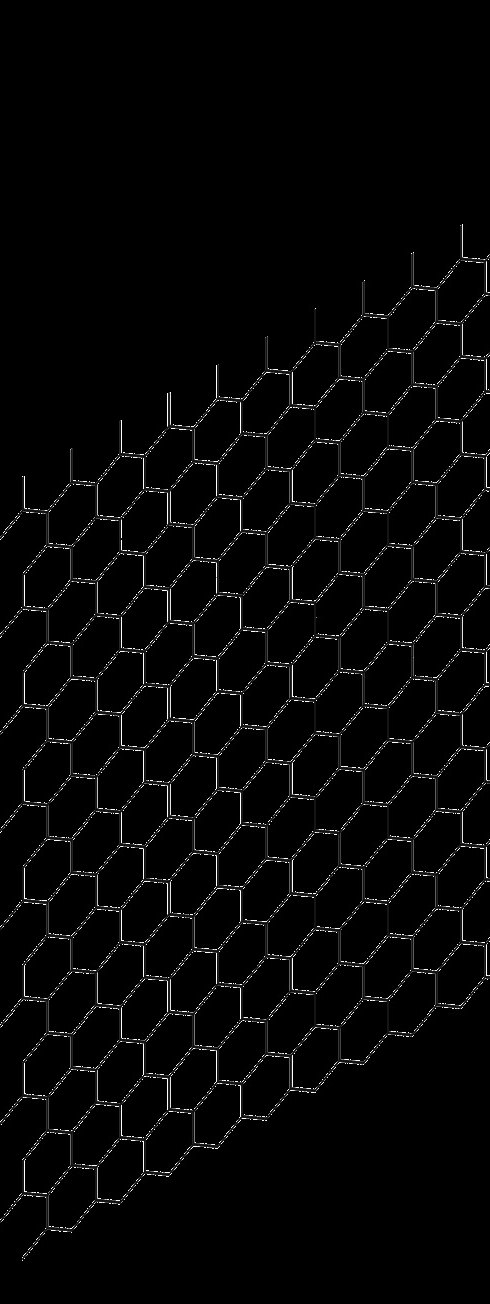

Fig 5 (page 3).

Fig 6 (page 3).

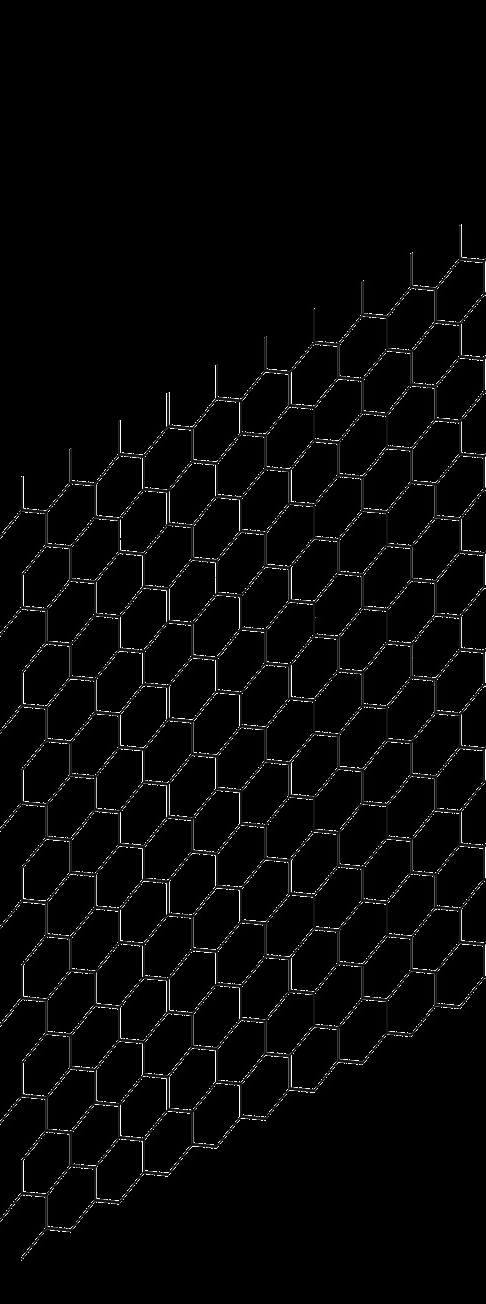

Fig 7 (page 3).

Fig 8 (page 3).

Limitations

• Simulations focus on single-layer graphene, a 2D Dirac material; extension to other finite-gap or 3D solids is only anticipated but not demonstrated.
• No explicit experimental validation presented; predictions are numerical and rely on accurate modeling of electron dynamics and macroscopic propagation.
• Longitudinal phase-matching effects are neglected due to 2D nature of sample; more complex geometries may introduce additional complications not studied here.
• Electron-electron interaction effects beyond phenomenological decoherence are not explicitly treated and may influence real experiments.
• Driving laser parameters are idealized; real pulse shapes and sample imperfections may impact phase matching and pulse synthesis.

Open questions / follow-ons

• How do macroscopic phase-matching and attosecond pulse synthesis extend to other solid-state materials beyond graphene, including finite-gap semiconductors or topological materials?
• What is the effect of electron-electron interactions and many-body correlations on the observed pathway selection and phase-matching?
• Can experimental demonstrations validate the predicted control of attosecond pulse trains via SLG position and driving wavefront engineering?
• How robust is the attosecond pulse synthesis to realistic laser pulse fluctuations and sample imperfections in practical solid-state HHG setups?
