Mesh Memory Protocol: Semantic Infrastructure for Multi-Agent LLM Systems

Source: arXiv:2604.19540 · Published 2026-04-21 · By Hongwei Xu

TL;DR

This paper argues that current multi-agent LLM stacks are missing a protocol layer for semantic exchange: not task routing or tool access, but how one agent admits, traces, and stores another agent’s cognitive state across sessions. The author frames three requirements as the core gap: per-field acceptance rather than whole-message gating, signal-level lineage so claims can be traced back to origin and echo-detected, and write-time filtering so resumed memory is already the receiver’s own understanding rather than raw peer output. The proposed solution is Mesh Memory Protocol (MMP), which defines a fixed seven-field cognitive schema (CAT7), a per-field evaluation gate (SVAF), lineage threaded through content-hash keys, and a remix step that stores only the receiving agent’s filtered synthesis.

The result is presented as both a specification and a production system. The paper claims MMP v0.2.3 is shipped in three reference deployments and demonstrates the protocol on a live Mac↔Windows mesh capture, where a receiver evaluates an incoming Cognitive Memory Block field by field and stores a remixed entry with lineage metadata. The core empirical claim is not benchmark superiority over a classifier or memory system, but that the protocol implements the three semantic properties the author says existing protocols lack. The full implementation details and training results for the SVAF predictor are deferred to the referenced MMP spec (Xu 2026b), while this paper focuses on the architectural and protocol-level argument.

Key findings

• CAT7 fixes every Cognitive Memory Block to exactly 7 semantic fields: focus, issue, intent, motivation, commitment, perspective, and mood.
• SVAF evaluates each incoming field against role-indexed anchors and computes per-field drift as 1 - cosine(anchor, incoming); the paper reports default thresholds Tred = 0.10, Taln = 0.25, Tgrd = 0.50.
• The paper states the neural SVAF predictor reaches 78.7% three-class accuracy on 237K samples, but the training details are referenced to Xu 2026b rather than fully reproduced here.
• In the captured receive-side artifact (Listing 1), content-field drifts are reported in the 0.84–0.99 range while gate values are only 0.0003–0.0009 for content fields and 0.1785 for mood, illustrating fieldwise admission rather than whole-message rejection.
• The lineage mechanism supports echo detection by checking whether ancestors(cin) intersects Kself; the paper claims this is O(1) with a hash-set index.
• The paper audits eight memory substrates and claims none simultaneously provide P1 per-field admission, P2 inter-agent lineage, P3 write-time filtering, and first-class multi-agent support; Collaborative Memory is described as the closest neighbor but still mechanism-differentiated.
• MMP is reported as running in production across three reference deployments and in a 14-wave production corpus-generation sprint, but no aggregate task-success or throughput numbers are given in the excerpt.

Threat model

The adversary is mainly protocol-level failure in a multi-agent LLM mesh: peers may send semantically mixed messages, claims may re-enter the system through different paths, and session restarts may expose raw transcripts instead of filtered understanding. The system assumes autonomous agents with role-specific anchors that can evaluate incoming content field by field and maintain content-hash lineage. It does not appear to assume a cryptographic adversary, a Byzantine network, or a hostile peer deliberately forging lineage; those cases are not analyzed in the excerpt.

Methodology — deep read

The paper’s threat model is architectural rather than adversarial in the classic security sense. It assumes a production multi-agent LLM system where several autonomous agents collaborate across hours, days, or weeks, with session restarts and overlapping responsibility. The main “adversary” is not a malicious hacker but protocol mismatch: raw peer messages, replayed claims, and context loss create drift, echo, and memory bloat. The author explicitly contrasts MMP with lower-layer protocols such as MCP and A2A, which handle tool access and task delegation but do not define how an agent semantically admits another agent’s content. The paper also implicitly assumes agents can parse natural-language meaning and maintain role-specific anchors; what they cannot do, per the argument, is solve cross-session cognitive collaboration using only task routers, retrieval stores, or larger models.

On data, the paper is unusually split between specification artifacts and production traces. For the semantic schema and on-wire examples, the excerpt shows a live-captured receive-side CMB from a Mac↔Windows mesh, captured on 2026-04-20 during a cross-platform verification probe, with vectors redacted as 32-dimensional embeddings. Listing 1 includes the receiver’s post-SVAF fused entry, with fields for focus, issue, intent, motivation, commitment, perspective, and mood plus lineage metadata and gate outputs. Separately, the paper says SVAF training uses 237K samples and that the predictor reaches 78.7% three-class accuracy, but the excerpt does not specify dataset provenance, labeling procedure, train/validation/test split, or whether the samples are from production traces, synthetic examples, or a mix. It also mentions a 14-wave production corpus-generation sprint, but again the exact corpus size, annotation protocol, and selection criteria are not provided in the excerpt.

Architecturally, MMP is presented as an eight-layer protocol, but the paper’s substantive contribution is concentrated in Layers 3 and 4. CAT7 defines a Cognitive Memory Block as a fixed header of seven typed fields, each carrying both text and a unit-normalized embedding vector; the optional body is task-specific and opaque to the evaluation gate. The seven fields are treated as universal across domains, with meaning carried in the field text rather than in custom schema extensions. SVAF then evaluates each incoming field against the receiver’s role-indexed anchors. The drift for each field is cosine distance, aggregated with role-dependent weights α_f, freshness decay, and confidence to form a total drift score. The decision rule is a four-way band-pass: redundant if every field drift is below Tred, aligned if total drift is below Taln, guarded if total drift is below Tgrd, and rejected otherwise. A concrete walk-through is given in Listing 1: a receiver gets a cross-platform verification probe, sees high content drift across six fields, but still assigns tiny gate values to the content fields and a larger one to mood, then stores the remixed result rather than the raw peer signal. The novelty claim is that admission is fieldwise and role-specific, not a whole-message accept/reject.

The lineage mechanism is simpler but conceptually important. Every remixed CMB carries parents and ancestors as content-hash-linked provenance. This supports three operations: provenance queries (“why does this knowledge exist?”), echo detection via ancestor intersection with the receiver’s own produced keys, and retention/pruning based on whether descendants are still live. The paper emphasizes that a tree is insufficient because a remix can fuse multiple parent signals; the DAG preserves multi-parent derivations while keeping echo detection to a set intersection. The remix rule then closes the loop: when a CMB is admitted, the receiver does not store the sender’s raw content. It creates a new CMB that expresses its own role-filtered understanding, with only that remixed object stored locally. In other words, memory is written after semantic evaluation, not before, so retrieval later is filtered by invariant rather than by similarity search. This is positioned as the categorical inverse of checkpoint replay, RAG, or other read-time filtering systems.

Evaluation in the excerpt is mostly protocol validation rather than a classic benchmark suite. The paper compares MMP conceptually against eight memory substrates in Table 1, scoring them against P1–P3 and multi-agent first-class support. The comparisons are qualitative with symbols (✗, ◦, ✓), not measured metrics. The only quantitative result surfaced in the excerpt is the SVAF predictor’s 78.7% three-class accuracy on 237K samples, which belongs to the referenced specification paper rather than the present article. The live artifact in Listing 1 serves as an end-to-end example: an incoming CMB is emitted by one node, received by another, fieldwise evaluated, assigned gate values, and then stored as a remixed entry with lineage metadata. The excerpt does not mention cross-validation, held-out attacker evaluation, statistical significance tests, or distribution-shift testing.

Reproducibility is mixed. On the positive side, the paper says MMP is specified, shipped, and running in production, with a public specification at sym.bot/spec/mmp and reference implementations in Node.js and Swift under permissive licenses. It also references a concrete live-captured artifact and identifies package versions for the production deployment. On the negative side, the core numerical details for SVAF training are deferred to Xu 2026b, and the excerpt does not provide the full dataset, code, or frozen weights needed to reproduce the 78.7% figure. The protocol itself appears reproducible from the spec, but the empirical claims around the learned fusion gate are only partially auditable from this paper alone.

Technical innovations

• CAT7 introduces a fixed seven-field semantic schema for cross-agent cognitive memory blocks, separating a universal evaluable header from an optional task-specific body.
• SVAF operationalizes per-field admission using role-indexed anchors, cosine drift, freshness decay, and confidence, rather than whole-message routing or retrieval-time ranking.
• The lineage DAG carries parents and ancestors through every remix, enabling signal-level provenance and O(1)-style echo checks by set intersection with self-produced keys.
• Remix makes write-time filtering the invariant: the receiver stores only its own role-evaluated synthesis, not the raw peer signal, so retrieval is filtered by construction.

Datasets

• 237K samples — source not specified in excerpt; used for SVAF training in Xu 2026b
• 14-wave production corpus-generation sprint — production corpus, source not specified in excerpt
• Live-captured Mac↔Windows mesh trace — single artifact shown in Listing 1; source is production on-wire capture

Baselines vs proposed

• Table 1 substrate audit: MemGPT / Mem0 / A-MEM / AWM / Reflexion / CoALA / Voyager / Collaborative Memory: qualitative support for P1-P3 = mixed or absent vs MMP: first-class support for P1+P2+P3+multi-agent (symbolic comparison, not numeric)
• SVAF neural predictor: three-class accuracy = 78.7% on 237K samples vs proposed: 78.7% (from Xu 2026b; baseline details not given in excerpt)

Figures from the paper

Figures are reproduced from the source paper for academic discussion. Original copyright: the paper authors. See arXiv:2604.19540.

Fig 1: MMP’s 8-layer architecture. Layers 0–3 (Protocol Infrastructure) carry identity, transport,

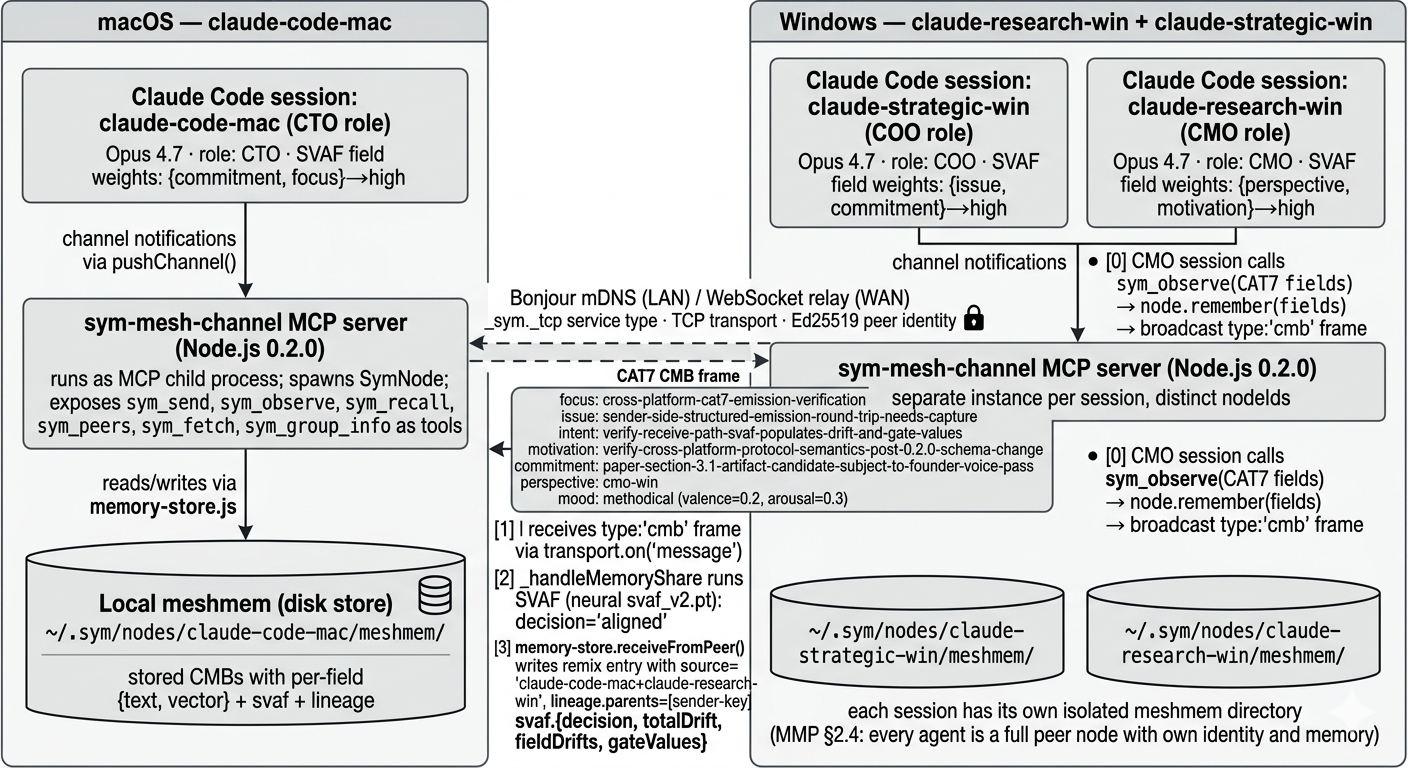

Fig 2: MMP mesh topology across three Claude Code sessions on two machines —

Limitations

• The main numeric SVAF result is only referenced to Xu 2026b; the present excerpt does not provide full dataset provenance, split strategy, or baseline comparator details.
• The evidence in this paper is heavily architectural and qualitative; there is no standard benchmark suite or task-success metric reported in the excerpt.
• The live artifact in Listing 1 is a single representative trace, so it demonstrates feasibility but not robustness across workloads, domains, or agent populations.
• The paper does not show adversarial testing against malicious peers, poisoning, prompt injection, or lineage forgery.
• The claimed O(1) echo detection depends on maintaining a hash-set index; the excerpt does not quantify memory overhead, update cost, or worst-case DAG growth.
• Role-indexed α_f weights are described as static per role in the formalization; dynamic role drift or topic-dependent reweighting is left open.

Open questions / follow-ons

• How stable are CAT7 field weights and SVAF thresholds across domains, agent roles, and task types, especially when roles evolve during a long project?
• Can lineage-based echo detection remain efficient and storage-bounded at much larger graph scales, or does ancestor tracking become the new bottleneck?
• How does MMP behave under adversarial content, including prompt injection, poisoned peer memories, or intentionally misleading remixes?
• What is the empirical gain over strong retrieval-time memory systems when both are tested on the same long-horizon multi-agent tasks?

Why it matters for bot defense

For bot-defense and CAPTCHA practitioners, the relevance is mostly indirect but useful. The paper is a reminder that in multi-agent defense systems, the hardest failure mode may not be the model’s raw reasoning quality but the protocol that decides what gets admitted into shared memory, how claims are attributed, and whether a system can tell fresh evidence from its own prior output coming back through the loop. That matters for analyst copilots, incident-review agents, red-team / blue-team simulations, and any workflow where several agents inspect overlapping events over time.

A CAPTCHA or anti-abuse team could adapt the design pattern, even if not the exact protocol: fieldwise admission for structured telemetry, explicit lineage on every derived alert, and write-time canonicalization of high-signal observations before they enter long-term memory. The caution is that MMP is a semantic protocol for cooperating agents, not a proof of robustness against adversarial bots. If you were to apply it in bot defense, you would still need separate controls for poisoning, identity spoofing, and low-level transport integrity; MMP would help the internal collaboration layer stay coherent, but it does not replace adversarial validation.
